ST300 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

SCR 2KV 1290A TO200AB

Part	SCR Type	Current - On State (It (AV)) (Max) [Max]	Current - Off State (Max) [Max]	Voltage - Off State	Current - On State (It (RMS)) (Max)	Voltage - On State (Vtm) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - On State (It (AV)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max) [Max]

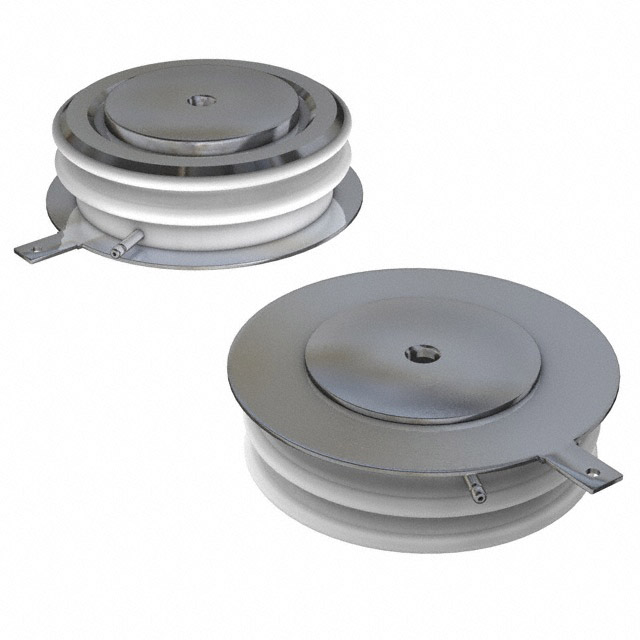

Vishay General Semiconductor - Diodes Division VS-ST300C20C0L	Standard Recovery	650 A	50 mA	2 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On	6730 A	7040 A	200 mA	TO-200AB (E-Puk)
Vishay General Semiconductor - Diodes Division VS-ST300S20P0	Standard Recovery		30 mA	2 kV	470 A	1.66 V	125 °C	-40 °C	Stud TO-118-4 TO-209AE	Chassis Stud Mount			200 mA		300 A	8000 A 8380 A
Vishay General Semiconductor - Diodes Division VS-ST300S18M0PBF	Standard Recovery		30 mA	1.8 kV	470 A	1.66 V	125 °C	-40 °C	Stud TO-118-4 TO-209AE	Chassis Stud Mount	6730 A	7040 A	200 mA		300 A
Vishay General Semiconductor - Diodes Division VS-ST300C18C0	Standard Recovery	650 A	50 mA	1.8 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On			200 mA	TO-200AB (E-Puk)		8000 A 8380 A
Vishay General Semiconductor - Diodes Division VS-ST300C18L1	Standard Recovery	650 A	50 mA	1.8 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On	6730 A	7040 A	200 mA	TO-200AB (E-Puk)
Vishay General Semiconductor - Diodes Division VS-ST300C18C1L	Standard Recovery	650 A	50 mA	1.8 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On	6730 A	7040 A	200 mA	TO-200AB (E-Puk)
Vishay General Semiconductor - Diodes Division VS-ST300C08C0	Standard Recovery	650 A	50 mA	800 V	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On			200 mA	TO-200AB (E-Puk)		8000 A 8380 A
Vishay General Semiconductor - Diodes Division VS-ST300C16C0	Standard Recovery	650 A	50 mA	1.6 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On			200 mA	TO-200AB (E-Puk)		8000 A 8380 A
Vishay General Semiconductor - Diodes Division VS-ST300C12L0	Standard Recovery	560 A	50 mA	1.2 kV		2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On			200 mA	TO-200AB (E-Puk)		8000 A 8380 A	1115 A
Vishay General Semiconductor - Diodes Division VS-ST300C18C1	Standard Recovery	650 A	50 mA	1.8 kV	1290 A	2.18 V	125 °C	-40 °C	E-PUK TO-200AB	Clamp On	6730 A	7040 A	200 mA	TO-200AB (E-Puk)
