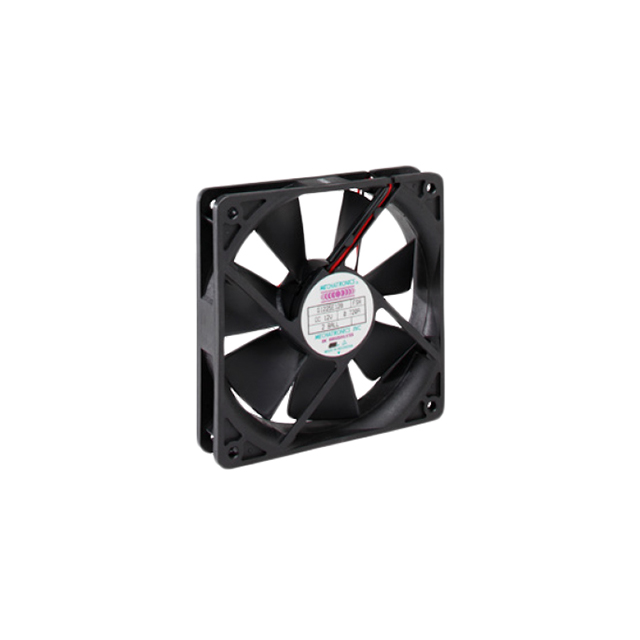

G1225 Series

Catalog

FAN AXIAL 120X25MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Features	Bearing Type	Fan Type	Noise	Approval Agency	Termination	RPM	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Ingress Protection
Mechatronics Fan Group G1225E24B2-FSR	0.38 A	Polybutylene Terephthalate (PBT)	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	Tubeaxial	42 dB	CE cUL TUV UL	3 Wire Leads	2700 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	24 VDC	54.8 Pa	0.22 in H2O	2.77 m³/min	99 CFM
Mechatronics Fan Group G1225S12B-FSR-EM		Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	26 dB	CE cUL TUV UL	2 Wire Leads	1500 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	12 VDC	17.4 Pa	0.07 in H2O	1.51 m³/min	54 CFM	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G1225M24B1-FSR-EM	190 mA	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	Tubeaxial	33 dB(A)	CE cUL TUV UL	3 Wire Leads	2100 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	24 VDC			2.18 mł/min	78 CFM	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G1225M12B1-FSR	0.35 A	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	Tubeaxial	33 dB(A)	CE cUL TUV UL	3 Wire Leads	2100 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	12 VDC			2.18 mł/min	78 CFM
Mechatronics Fan Group G1225M24B-FSR	190 mA	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	33 dB(A)	CE cUL TUV UL	2 Wire Leads	2100 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	24 VDC			2.18 mł/min	78 CFM
Mechatronics Fan Group G1225H12B2-FSR	480 mA	Polybutylene Terephthalate (PBT)	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	Tubeaxial	38 dB(A)	CE cUL TUV UL	3 Wire Leads	2400 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	12 VDC	44.8 Pa	0.18 in H2O	2.44 m³/min	87 CFM
Mechatronics Fan Group G1225E12B-FSR	0.72 A	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	42 dB	CE cUL TUV UL	2 Wire Leads	2700 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	12 VDC	54.8 Pa	0.22 in H2O	2.77 m³/min	99 CFM
Mechatronics Fan Group G1225M12B1+6-FSR	0.35 A	Polybutylene Terephthalate (PBT)	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	Tubeaxial	33 dB(A)	CE cUL TUV UL	4 Wire Leads	2100 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	12 VDC			2.18 mł/min	78 CFM
Mechatronics Fan Group G1225H24B-FSR	270 mA	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	38 dB(A)	CE cUL TUV UL	2 Wire Leads	2400 RPM	196.86 g	0.434 lb	120 mm	120 mm	25 mm	24 VDC	44.8 Pa	0.18 in H2O	2.44 m³/min	87 CFM
Mechatronics Fan Group G1225L24B2-FSR-TTL-NH	120 mA	Polybutylene Terephthalate (PBT)	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	Tubeaxial	29 dB(A)	CE cUL TUV UL	3 Wire Leads	1800 RPM	197.77 g	0.436 lb	120 mm	120 mm	25 mm	24 VDC	24.9 Pa	0.1 in H2O	1.85 m³/min	66 CFM
