TLHS-88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

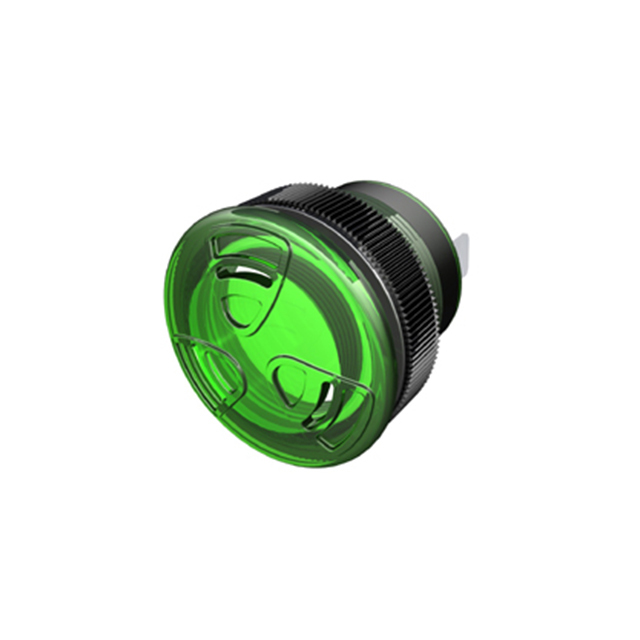

BUZZER 33.02MM PNL MNT
| Part | Input Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency | Sound Pressure Level (SPL) | Port Location | Approval Agency | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Termination | Termination | Driver Circuitry | Operating Mode | Voltage Range [Max] | Voltage Range [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | 2.9 kHz | 103 dB | Top | UL UR | 50 mA | 110 mA | Panel Mount | 1.3 in | 33.02 mm | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | Siren | 30 V | 9 V | IP68 - Dust Tight Waterproof |
 Floyd Bell Inc | DC | 29.97 mm | 1.18 in | 2.9 kHz | 103 dB | Top | UL UR | 50 mA | 110 mA | Panel Mount | 1.3 in | 33.02 mm | 0.25 " | Quick Connect Tab | 6.35 mm | Indicator Internally Driven | Siren | 30 V | 9 V | IP68 - Dust Tight Waterproof |
