76342 Series

Catalog

CONN RCPT 8POS 0.1 GOLD PCB

Part	Contact Type	Material Flammability Rating	Insulation Color	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Mounting Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Termination	Insulation Height	Insulation Height	Mated Stacking Heights [z]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Positions

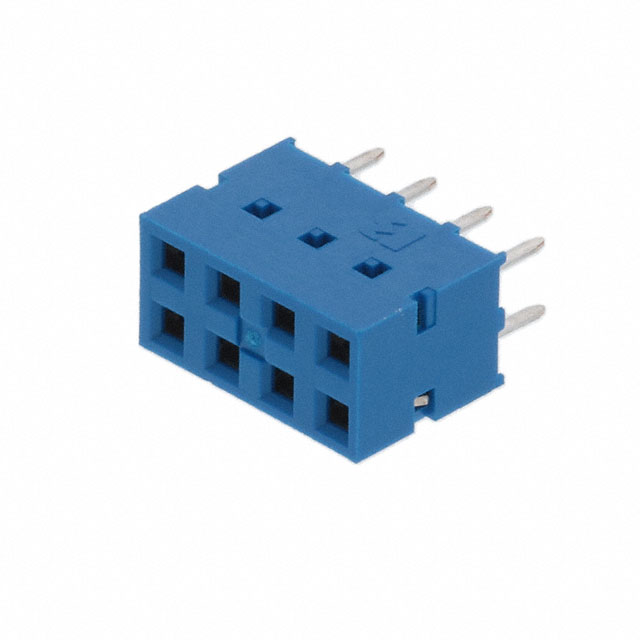

Amphenol ICC (FCI) 76342-304LF	Female Socket	UL94 V-0	Blue	8	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-430LF	Female Socket	UL94 V-0	Blue	60	2.54 mm	0.1 in	Square	Through Hole	Tin	All		2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	78.7 µin	2 µm	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-334LF	Female Socket	UL94 V-0	Blue	68	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-408CLF	Female Socket	UL94 V-0			2.54 mm	0.1 in	Square	Through Hole	Tin	All		2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	78.7 µin	2 µm	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications	16
Amphenol ICC (FCI) 76342-312	Female Socket	UL94 V-0	Blue	24	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-412	Female Socket	UL94 V-0	Blue	24	2.54 mm	0.1 in	Square	Through Hole	Tin-Lead	All	Tin-Lead	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	78.7 µin	2 µm	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications

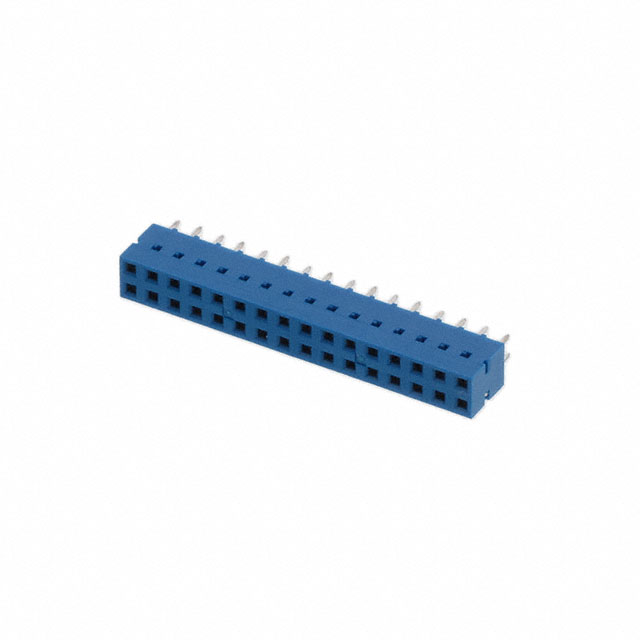

Amphenol ICC (FCI) 76342-316LF	Female Socket	UL94 V-0	Blue		2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-307HLF	Female Socket	UL94 V-0	Gray	14	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-302	Female Socket	UL94 V-0	Blue	4	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
Amphenol ICC (FCI) 76342-325HLF	Female Socket	UL94 V-0	Gray	50	2.54 mm	0.1 in	Square	Through Hole	Tin	All	Gold	2	Solder	6.99 mm	0.275 in	11.04 mm	0.1 in	2.54 mm	0.114 in	2.9 mm	Phosphor Bronze	30 Áin	0.76 Ám	Receptacle	Push-Pull	2 çm	78.7 çin	Automotive General Purpose Industrial Telecommunications
