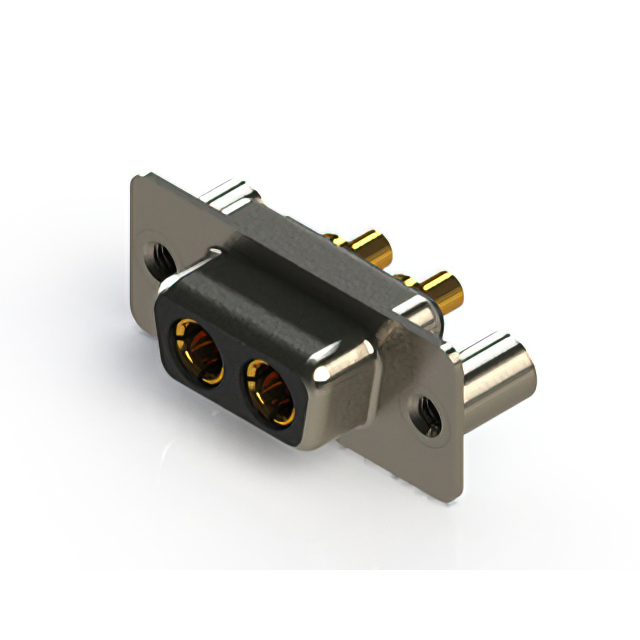

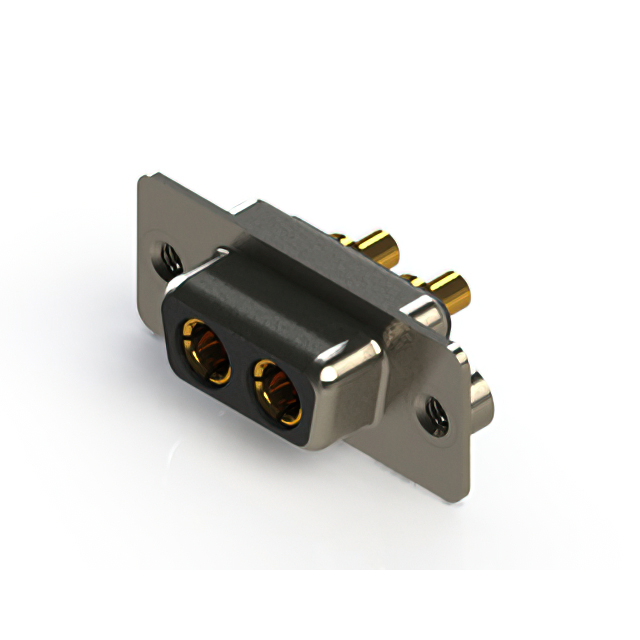

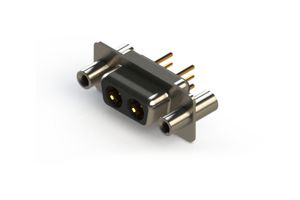

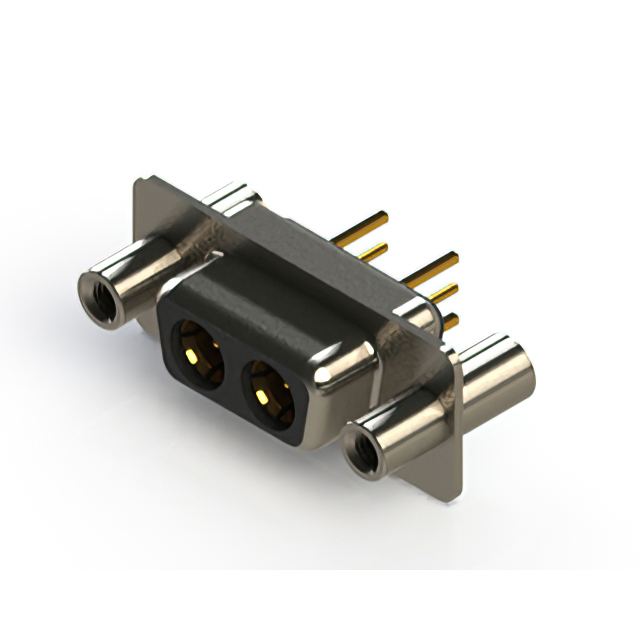

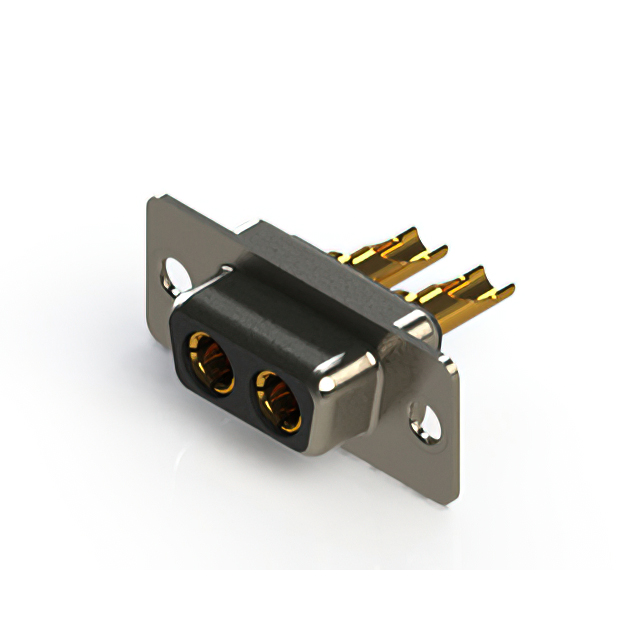

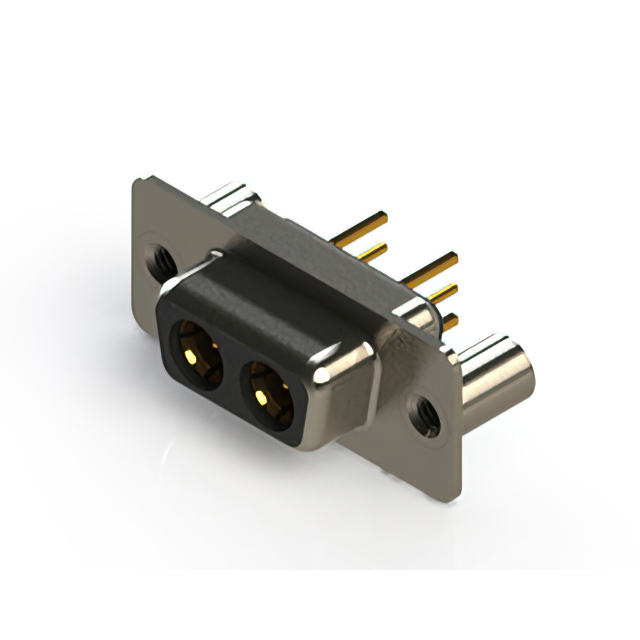

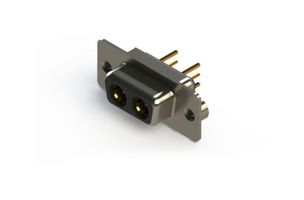

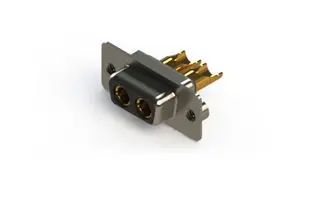

628-2W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K

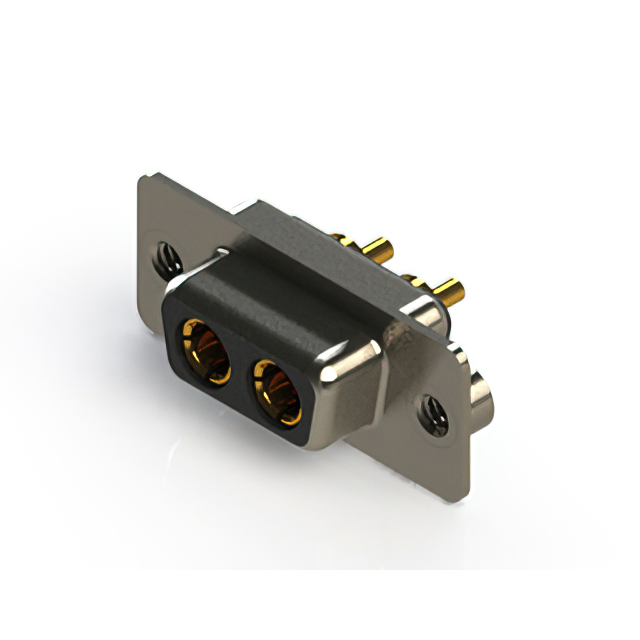

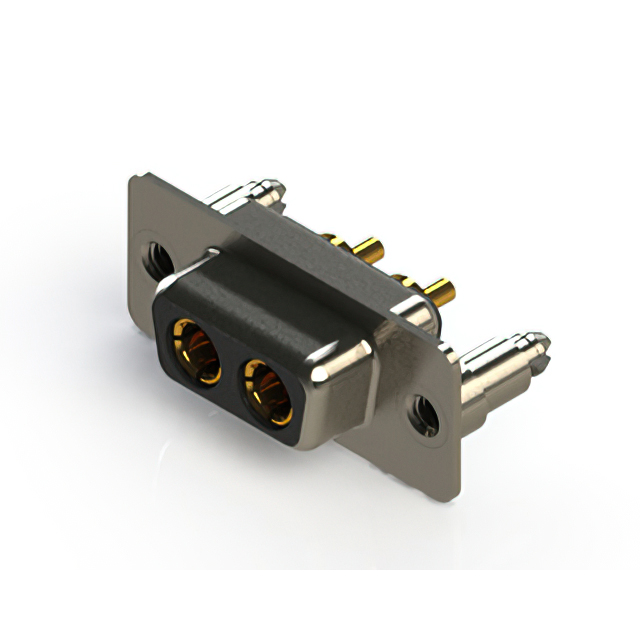

CONN D-SUB RCPT 2POS VERT SLDR
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Current Rating (Amps) | Number of Rows | Connector Type | Contact Finish | Number of Positions | Termination | Flange Feature | Connector Style | Contact Type | Material Flammability Rating | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Size, Connector Layout | Shell Material, Finish | Contact Finish Thickness | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 20 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (M3) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | 30 Áin | 0.76 Ám | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | |||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 20 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (M3) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | 30 Áin | 0.76 Ám | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | ||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 10 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (4-40) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | 30 Áin | 0.76 Ám | Board Lock Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | |||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 1 | Receptacle Female Sockets | Gold | 2 | Solder | M3 | Combo D-Sub | Coax Signal | UL94 V-0 | Through Hole | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | Flash | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 20 A | 1 | Receptacle Female Sockets | Gold | 2 | Housing/Shell (Unthreaded) | Combo D-Sub | Signal and Power | UL94 V-0 | Free Hanging (In-Line) | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | Flash | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 30 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (M3) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | 30 Áin | 0.76 Ám | Board Lock Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | ||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 10 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (4-40) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Flash | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Combo D-Sub | Coax Signal | UL94 V-0 | Through Hole | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Flash | 4-40 | 4-40 | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (M3) | Combo D-Sub | Coax Signal | UL94 V-0 | Through Hole | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | Flash | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | 125 VDC | 30 A | 1 | Receptacle Female Sockets | Gold | 2 | Solder | Board Side (M3) | Combo D-Sub | Signal and Power | UL94 V-0 | Through Hole | 30 Áin | 0.76 Ám | Shielded | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel |
