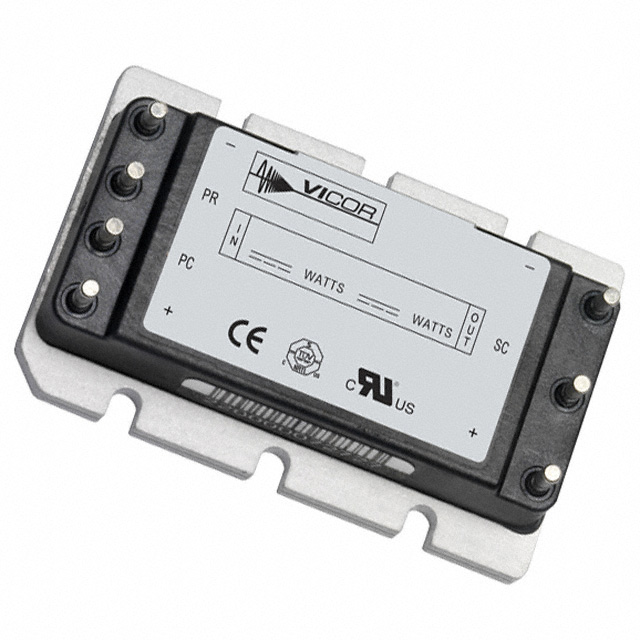

V110C28T100 Series
Manufacturer: Vicor Corporation
Beta
⌘K
DC DC CONVERTER 28V 100W
| Part | Voltage - Output 1 | Features | Mounting Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Package / Case | Voltage - Input (Min) [Min] | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Number of Outputs | Efficiency | Voltage - Isolation | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vicor Corporation | 28 V | OVP UVLO | Through Hole | ITE (Commercial) | -40 C | 100 °C | 100 W | Quarter Brick | 66 V | Isolated Module | 2.28 " | 13.7 mm | 36.8 mm | 57.9 mm | 1.45 in | 0.54 " | 154 V | 1 | 86.3 % | 3000 V | 3.57 A |
