XJ8D Series

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Shrouding	Insulation Material	Current Rating (Amps)	Number of Positions	Style	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Shape	Insulation Color	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Contact Length - Post [custom]	Contact Length - Post	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Height	Insulation Height	Contact Type	Mounting Type	Number of Rows [custom]

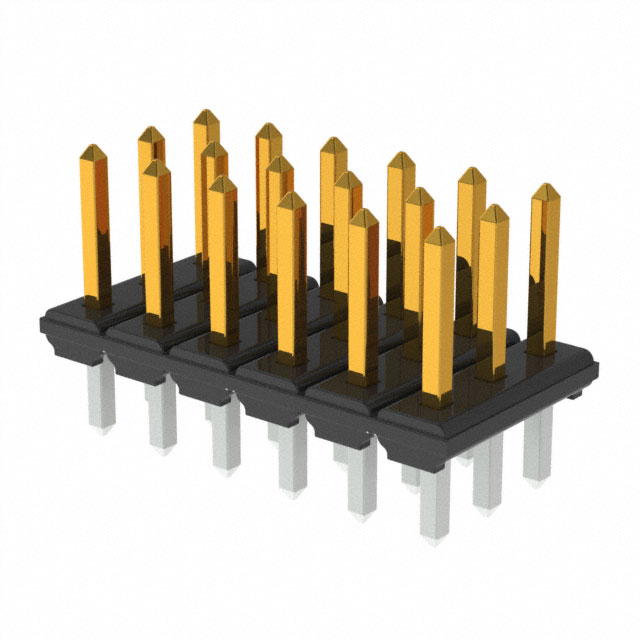

Omron Electronics Inc-EMC Div XJ8D-1811	Unshrouded	Polyphenylene Sulfide (PPS) Glass Filled	2 A	18	Board to Board Cable	Push-Pull	All	0.169 in	4.3 mm	Solder	0.1 "	2.54 mm	Gold	Square	Black	5.9 µin	0.15 µm	Header	0.11 in	2.79 mm	300 VDC	-55 C	105 ░C	0.1 in	2.54 mm	UL94 V-0	8.6 mm	0.339 in	Brass Nickel	0.059 in	1.5 mm	Male Pin	Through Hole	3

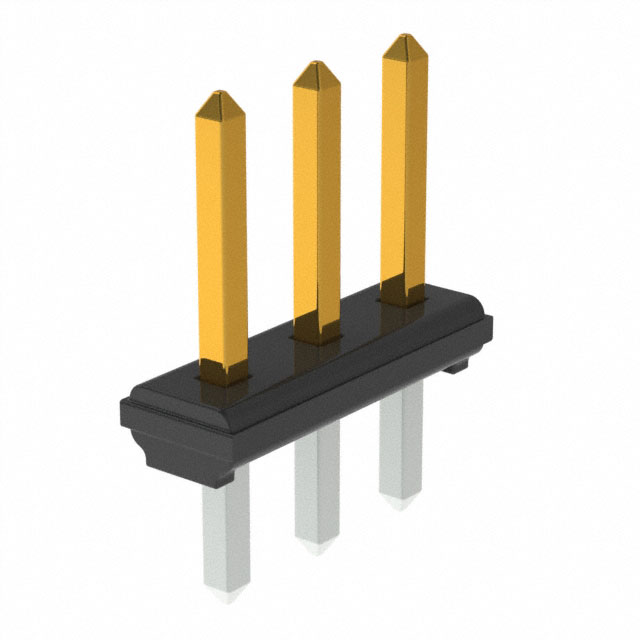

Omron Electronics Inc-EMC Div XJ8D-0311	Unshrouded	Polyphenylene Sulfide (PPS) Glass Filled	2 A		Board to Board Cable	Push-Pull	All	0.169 in	4.3 mm	Solder			Gold	Square	Black	5.9 µin	0.15 µm	Header	0.11 in	2.79 mm	300 VDC	-55 C	105 ░C	0.1 in	2.54 mm	UL94 V-0	8.6 mm	0.339 in	Brass Nickel	0.059 in	1.5 mm	Male Pin	Through Hole	3
