P70-10300 Series
Manufacturer: Harwin Inc.
Beta
⌘K

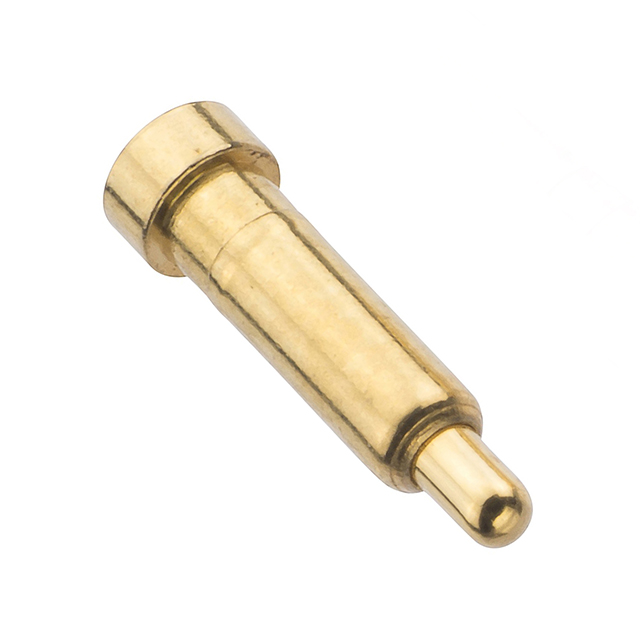

INDIVIDUAL SMT SPRING LOADED POGO PIN, 7.3MM ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type | Mating Cycles | Operating Force - Mid Compression | Recommended Working Height | Recommended Working Height | Minimum Working Height [z] | Minimum Working Height [z] | Contact Finish | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 16 µin | 0.41 µm | Surface Mount | 2.2 mm | Circular | 0.087 in | 6.5 mm | 0.256 in | 0.035 in | 0.9 mm | Sleeve & Plunger (Pogo Pins) | 10000 | 131.54 gf | 6.2 mm | 0.244 in | 6 mm | 0.236 in | Gold | 2 A | Brass |
