123-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 24POS GOLD

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Material - Post	Mounting Type	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type [custom]	Type [custom]	Type	Features	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Type	Type

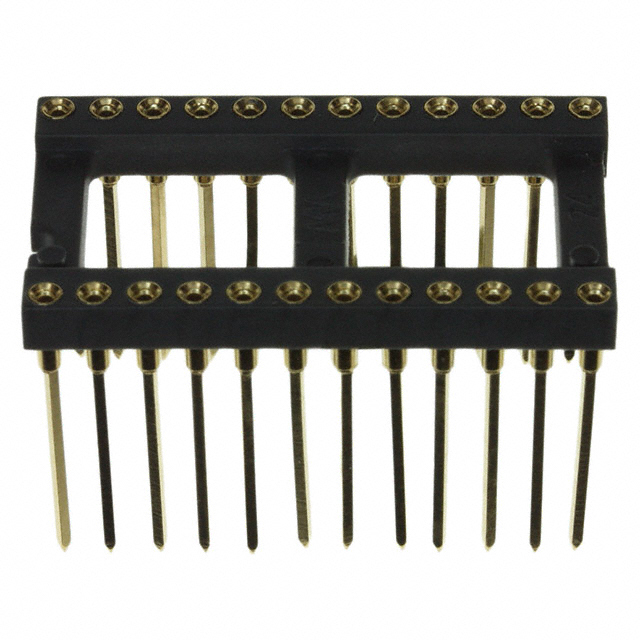

Mill-Max Manufacturing Corp. 123-13-624-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin	15.24 mm	0.6 in	DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold	12	2	24
Mill-Max Manufacturing Corp. 123-13-320-41-801000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Decoupling Capacitor Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			20	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-636-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin	15.24 mm	0.6 in	DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			36
Mill-Max Manufacturing Corp. 123-13-322-41-801000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Decoupling Capacitor Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold	2	11	22	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-318-41-801000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Decoupling Capacitor Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			18	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-324-41-801000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Decoupling Capacitor Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold	12	2	24	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-322-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold	2	11	22	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-428-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			28		0.4 in
Mill-Max Manufacturing Corp. 123-13-318-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			18	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-13-320-41-001000	3 A	12.95 mm	0.51 "	Brass Alloy	Through Hole	0.1 in	2.54 mm	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	0.76 Ám	30 Áin			DIP	Open Frame	Wire Wrap	Gold	-55 C	125 °C	Gold			20	7.62 mm	0.3 in
