2323750 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

ASSY,HDR,RIGHT ANGLE,GWT,DUAL RO

Part	Number of Rows	Features	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Style	Fastening Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Number of Positions Loaded	Voltage Rating

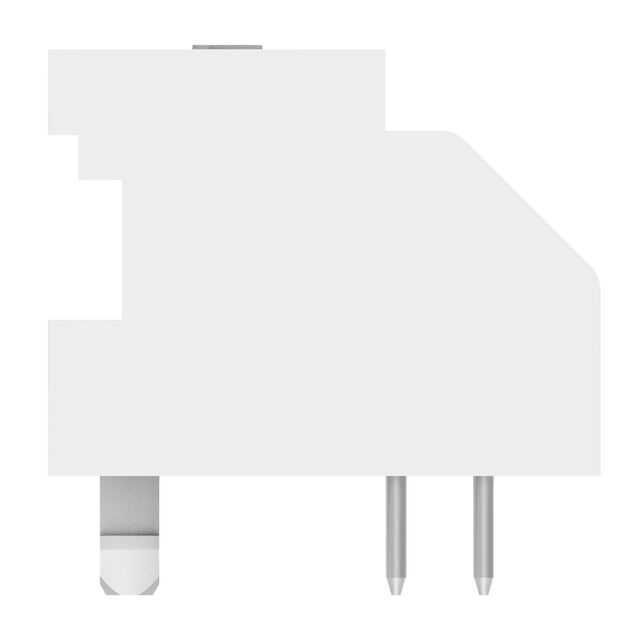

TE Connectivity Raychem Cable Protection 1-2323750-2	2	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	105 ░C	-55 °C	Male Pin	Solder	2.5 mm	0.098 in	Tin	UL94 V-0	Natural	12.17 mm	0.479 in	0.098 in	2.5 mm	Board to Cable/Wire	Friction Lock	Circular	0.134 in	3.4 mm	Copper Alloy	12	2 çm	78.7 çin	4.2 A	Polyamide (PA66) Nylon 6/6	78.7 µin	2 µm	Through Hole Right Angle	Header	All	250 VAC
TE Connectivity Raychem Cable Protection 3-2323750-6	2	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	105 ░C	-55 °C	Male Pin	Solder	2.5 mm	0.098 in	Tin	UL94 V-0	Natural	12.17 mm	0.479 in	0.098 in	2.5 mm	Board to Cable/Wire	Friction Lock	Circular	0.134 in	3.4 mm	Brass	36	2 çm	78.7 çin	4.2 A	Polyamide (PA66) Nylon 6/6	78.7 µin	2 µm	Through Hole Right Angle	Header	All	250 VAC

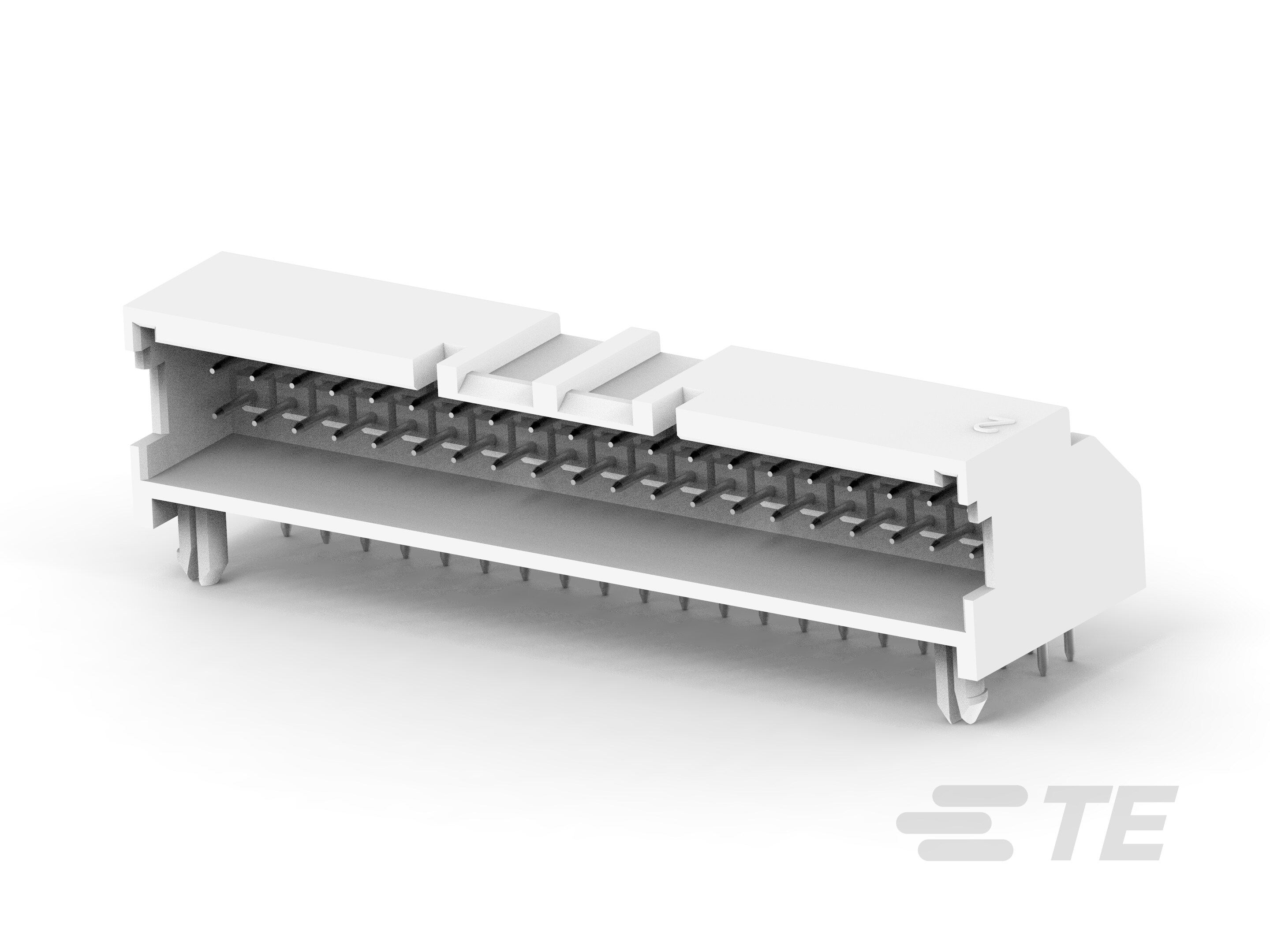

TE Connectivity Raychem Cable Protection 4-2323750-0	2	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	105 ░C	-55 °C	Male Pin	Solder	2.5 mm	0.098 in	Tin	UL94 V-0	Natural	12.17 mm	0.479 in	0.098 in	2.5 mm	Board to Cable/Wire	Friction Lock	Circular	0.134 in	3.4 mm	Copper Alloy	40	2 çm	78.7 çin		Polyamide (PA66) Nylon 6/6	78.7 µin	2 µm	Through Hole Right Angle	Header	All	250 VAC
TE Connectivity Raychem Cable Protection 1-2323750-4	2	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	105 ░C	-55 °C	Male Pin	Solder	2.5 mm	0.098 in	Tin	UL94 V-0	Natural	12.17 mm	0.479 in	0.098 in	2.5 mm	Board to Cable/Wire	Friction Lock	Circular	0.134 in	3.4 mm	Copper Alloy	14	2 çm	78.7 çin	4.2 A	Polyamide (PA66) Nylon 6/6	78.7 µin	2 µm	Through Hole Right Angle	Header	All	250 VAC
