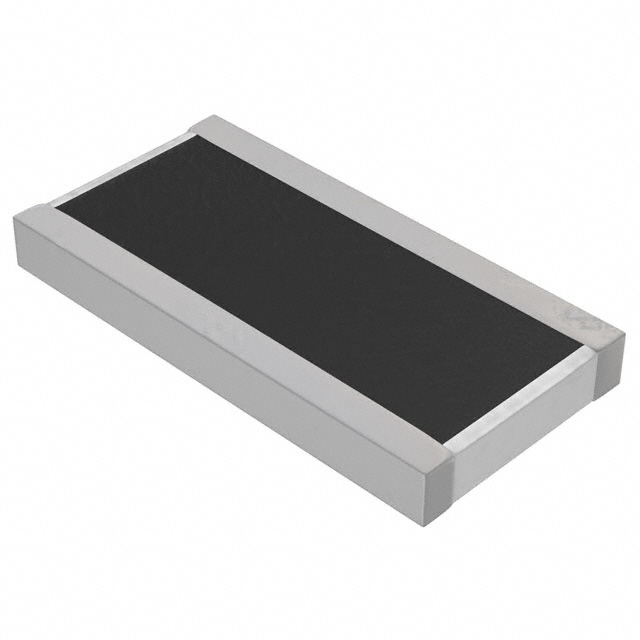

LTR18EZPJ000 Series

1632(0612)Size, High Power Chip Jumper(AEC-Q200 Qualified)

Catalog

1632(0612)Size, High Power Chip Jumper(AEC-Q200 Qualified)

Part	Composition	Supplier Device Package	Supplier Device Package	Features	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations	Tolerance	Package / Case	Resistance	Size / Dimension [y]	Size / Dimension [x]	Ratings
Rohm Semiconductor LTR18EZPJ000	Thick Film	0612	1632	Automotive AEC-Q200 Pulse Withstanding	155 °C	-55 °C	0.026 in	0.65 mm	2	Jumper	Wide 1206 (3216 Metric) 0612	0 Ohms	0.126 in 3.2 mm	0.063 in 1.6 mm	AEC-Q200

Catalog

1632(0612)Size, High Power Chip Jumper(AEC-Q200 Qualified)

Key Features

• High joint reliability for temperature changing with long side terminations., Contribute to space saving with high rated power., Anti-surge Characteristic is largely improved with the design that electric current don't concentrate, ROHM resistors have obtained ISO9001 / IATF16949 certification., Corresponds to AEC-Q200.

Description

High-power chip resistors have the terminals at long sides of square shape featuring far higher rated power than the standard resistors. This structure having short distance between the both terminations attains strong soldering fixation.
