CAT1023 Series

Catalog

IC SUPERVISOR MEMORY 8SOIC

Part	Number of Voltages Monitored	Voltage - Threshold	Output	Type	Reset Timeout	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Reset	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case
ON Semiconductor CAT1023WI28	1	2.85 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-SOIC	Active High/Active Low	Surface Mount	8-SOIC	3.9 mm	0.154 in
ON Semiconductor CAT1023WI-45-A2	1	4.5 V 4.75 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-SOIC	Active High/Active Low	Surface Mount	8-SOIC	3.9 mm	0.154 in
ON Semiconductor CAT1023WI30	1	3 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-SOIC	Active High/Active Low	Surface Mount	8-SOIC	3.9 mm	0.154 in
ON Semiconductor CAT1023WI-42-G	1	4.25 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-SOIC	Active High/Active Low	Surface Mount	8-SOIC	3.9 mm	0.154 in
ON Semiconductor CAT1023ZI-25-T3	1	2.55 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-MSOP	Active High/Active Low	Surface Mount	8-MSOP 8-TSSOP			0.118 in	3 mm
ON Semiconductor CAT1023YI-42-GT3	1	4.25 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-TSSOP	Active High/Active Low	Surface Mount	8-TSSOP			0.173 "		4.4 mm

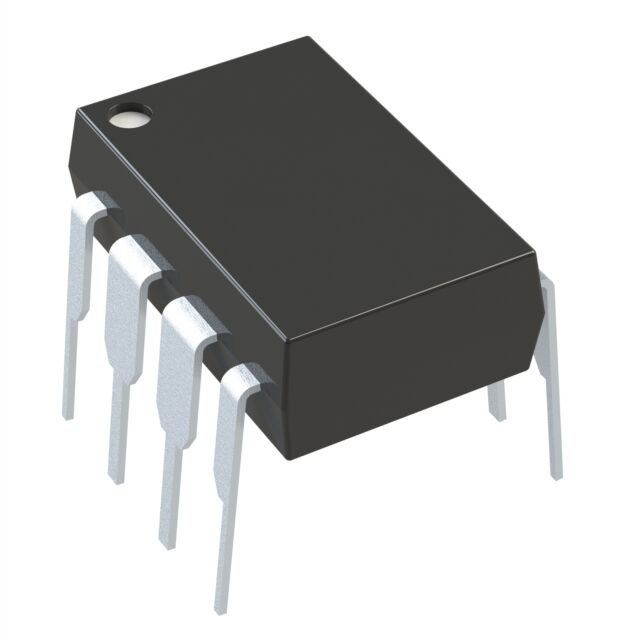

ON Semiconductor CAT1023LI-42	1	4.25 V 4.5 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-PDIP	Active High/Active Low	Through Hole	8-DIP				0.3 in		7.62 mm
ON Semiconductor CAT1023WI-28-GT3	1	2.85 V	Open Drain or Open Collector	Simple Reset/Power-On Reset	130 ms	85 °C	-40 °C	8-SOIC	Active High/Active Low	Surface Mount	8-SOIC	3.9 mm	0.154 in
