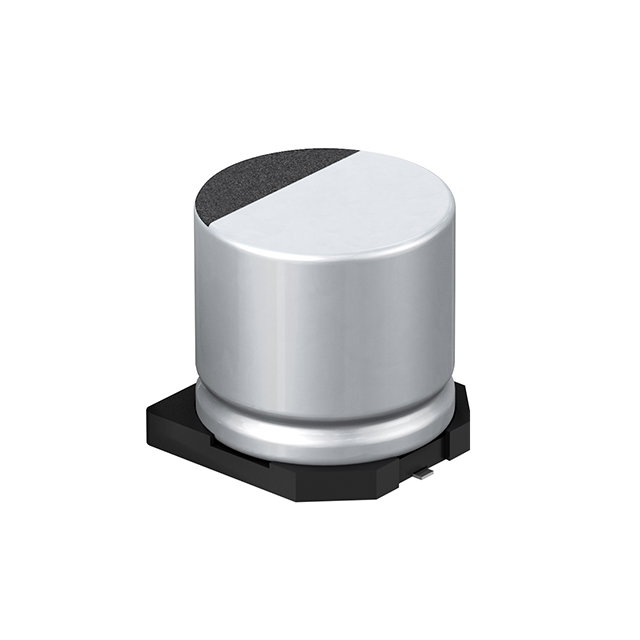

EEH-ZE Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYBRID 33UF 20% 63V SMD

Part	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Voltage - Rated	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Applications	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Ratings
Panasonic Industrial Automation Sales EEH-ZE1J330V	20 %	0.315 "	8 mm	33 ÁF	0.327 "	8.3 mm	0.327 in	8.3 mm	145 °C	-55 °C	40 mOhm	63 V	2000 Hrs	Radial Can - SMD	60 mA	Automotive	Surface Mount	600 mA	0.413 in	10.5 mm	Hybrid	AEC-Q200
Panasonic Industrial Automation Sales EEH-ZE1H680P	20 %	0.315 "	8 mm	68 µF	0.327 "	8.3 mm	0.327 in	8.3 mm	145 °C	-55 °C	30 mOhms	50 VDC	2000 Hrs	Radial Can - SMD	90 mA	Automotive	Surface Mount	600 mA	0.413 in	10.5 mm	Hybrid	AEC-Q200
Panasonic Industrial Automation Sales EEH-ZE1E221P	20 %	0.315 "	8 mm	220 µF	0.327 "	8.3 mm	0.327 in	8.3 mm	145 °C	-55 °C	27 mOhms	25 VDC	2000 Hrs	Radial Can - SMD	105 mA	Automotive	Surface Mount	700 mA	0.413 in	10.5 mm	Hybrid	AEC-Q200
Panasonic Industrial Automation Sales EEH-ZE1E331V	20 %	0.394 in	10 mm	330 µF	0.406 in	10.3 mm	0.406 "	10.3 mm	145 °C	-55 °C	20 mOhms	25 VDC	2000 Hrs	Radial Can - SMD	135 mA	Automotive	Surface Mount	900 mA	0.413 in	10.5 mm	Hybrid	AEC-Q200
Panasonic Industrial Automation Sales EEH-ZE1J560V	20 %	0.394 in	10 mm	56 µF	0.406 in	10.3 mm	0.406 "	10.3 mm	145 °C	-55 °C	30 mOhms	63 V	2000 Hrs	Radial Can - SMD	120 mA	Automotive	Surface Mount	800 mA	0.413 in	10.5 mm	Hybrid	AEC-Q200
