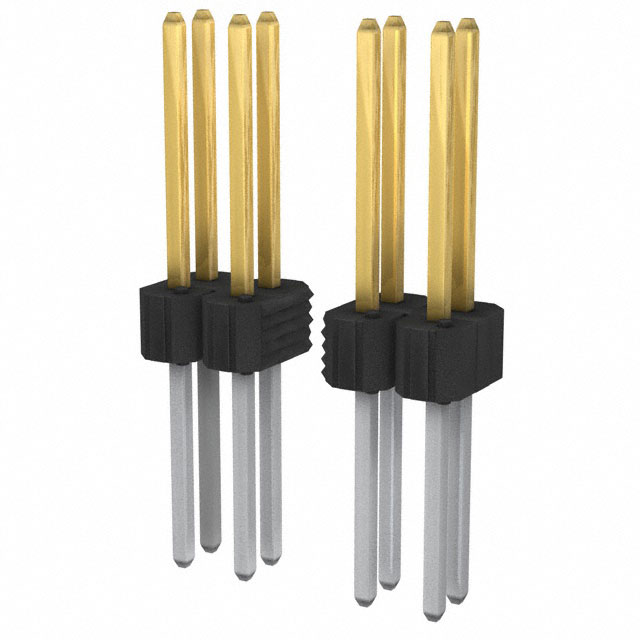

95665 Series

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Contact Shape	Insulation Color	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Positions	Contact Finish - Mating	Contact Material	Termination	Connector Type	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type
Amphenol ICC (FCI) 95665-120HLF	Square	Black	Male Pin	2.54 mm	0.1 in	2	0.1 in	2.54 mm	10.16 mm	0.4 in	All	20	Gold or Gold GXT™	Phosphor Bronze	Solder	Header	0.1 in	2.54 mm	Unshrouded	30 Áin	0.76 Ám	UL94 V-0	0.835 in	21.21 mm	Push-Pull	8.5 mm	0.335 in	Through Hole
