MC25MCB Series

Catalog

SWITCH CAPACITIVE DPST ON-MOM

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Color - Actuator/Cap	Switch Function	Type	Illumination Type, Color	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Illumination Voltage (Nominal)	Circuit	Actuator Marking

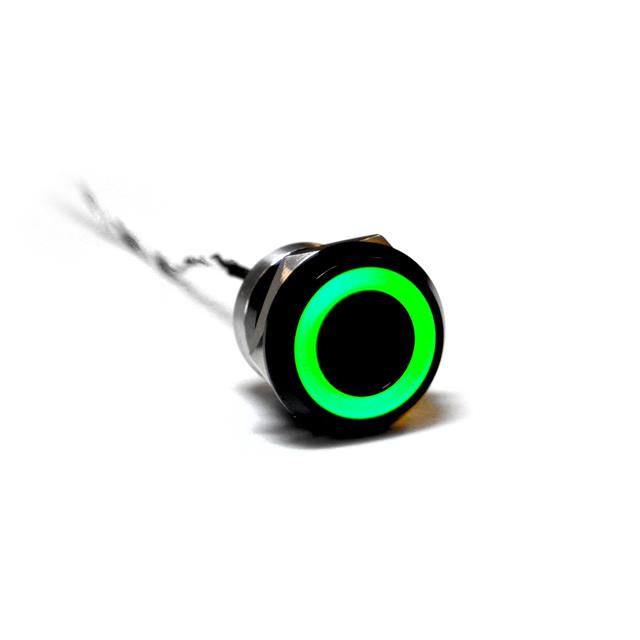

BULGIN LIMITED MC25MCBGN	50 000 000	50000000 Cycles	500 mA	55 °C	-25 °C	Panel Mount Front	Button Flush Round	Black	On-Mom	Capacitive Illuminated	Green LED	IP68 IP69K	Wire Leads	25.2 mm	24 V	12 VDC	SPST-NC
BULGIN LIMITED MC25MCBGR	50 000 000	50000000 Cycles	500 mA	55 °C	-25 °C	Panel Mount Front	Button Flush Round	Black	On-Mom	Capacitive Illuminated	Green/Red LED	IP68 IP69K	Wire Leads	25.2 mm	12 V		SPST-NC	No Marking
BULGIN LIMITED MC25MCBRD	50 000 000	50000000 Cycles	500 mA	55 °C	-25 °C	Panel Mount Front	Button Flush Round	Black	On-Mom	Capacitive Illuminated	LED Red	IP68 IP69K	Wire Leads	25.2 mm	24 V	12 VDC	SPST-NC
BULGIN LIMITED MC25MCBAM	50 000 000	50000000 Cycles	500 mA	55 °C	-25 °C	Panel Mount Front	Button Flush Round	Black	On-Mom	Capacitive Illuminated	Amber LED	IP68 IP69K	Wire Leads	25.2 mm	24 V	12 VDC	SPST-NC
