AMP2511 Series

Catalog

AC/DC DESKTOP ADAPTER 48V 250W

Part	Approval Agency	Output Connector	Output Connector	Region Utilized	Form	Applications	Power (Watts)	No Load Power Consumption	Standard Number	Efficiency	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output
Astrodyne TDI AMP2511-11	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	250 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	5.2 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	48 V
Astrodyne TDI AMP2511-10	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	250 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	6.94 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	36 V
Astrodyne TDI AMP2511-09	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	250 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	8.32 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	30 V
Astrodyne TDI AMP2511-08	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	250 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	10.41 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	24 V

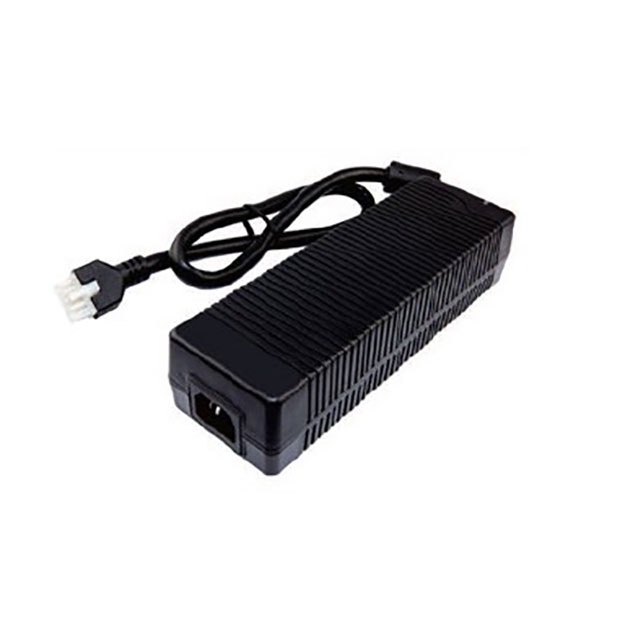

Astrodyne TDI AMP2511-05	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	230 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	19.16 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	12 V
Astrodyne TDI AMP2511-07	CB CE cURus FCC TUV	Rectangular	10 Pin	International	Desktop (Class I)	Medical	250 W	210 mW	60601-1	Level VI	IEC 320-C14	264 VAC	90 VAC	Cord (Sold Separately)	70 °C	-10 °C	13.15 A	609.6 mm	24 in	199.9 mm	2.56 in	65 mm	45 mm	7.87 in	1.77 in	19 V
