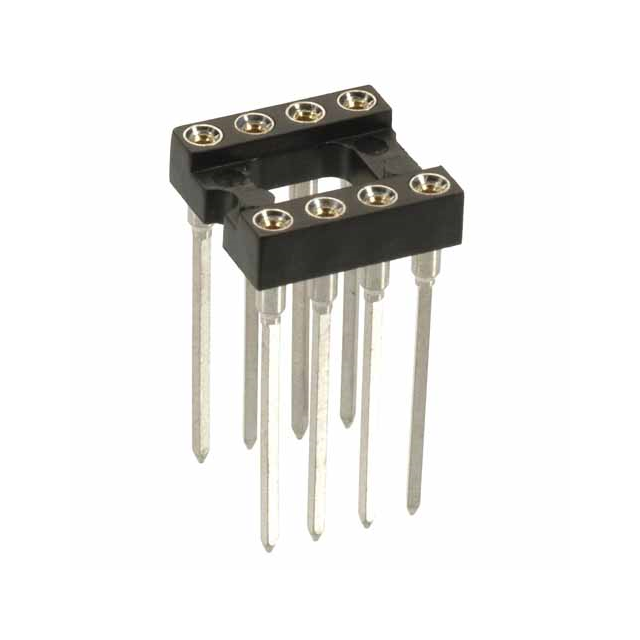

D0806 Series
Manufacturer: Harwin Inc.
Beta
⌘K
06 WAY 0.3"IC SKT 3 LVL W/W ROHS COMPLIANT: YES
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Material - Mating | Pitch - Post | Pitch - Post | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Housing Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Contact Finish - Post | Type | Type | Type | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Material - Post [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | 10 mOhm | 12.95 mm | 0.51 " | 1 A | Beryllium Copper | 0.1 in | 2.54 mm | Gold | 5 µm | 196.9 µin | 0.25 µm | 10 µin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Wire Wrap | -55 C | 125 °C | 3 positions or pins | 2 | 6 | Tin | 7.62 mm | 0.3 in | DIP | 0.1 " | 2.54 mm | Through Hole | Brass | Open Frame |
