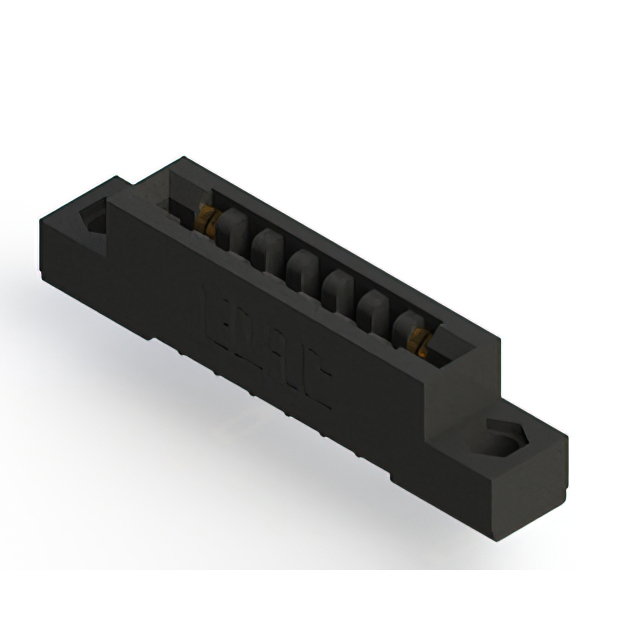

857-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 7POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Card Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Gender | Color | Number of Positions | Contact Material | Mounting Type | Flange Feature | Contact Type | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | 1 | Female | Black | 7 | Copper Alloy | Through Hole | Flush Mount Top Opening Unthreaded | Semi Bellows | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | 1 | Female | Black | 7 | Copper Alloy | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Dual Edge | Dual | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Black | 14 | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | 2 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | Semi Bellows | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Single Edge | Single | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 1 | Female | Black | 7 | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 7 | Non Specified - Dual Edge | Dual | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Black | 14 | Copper Alloy | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | Semi Bellows | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | 2 |
