FTE-106 Series

Catalog

CONN UNSHROUDED HEADER HDR 12 POS 0.8MM SOLDER ST SMD TUBE

Part	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Termination	Insulation Color	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Fastening Type	Contact Finish - Post	Shrouding	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Insulation Height	Insulation Height

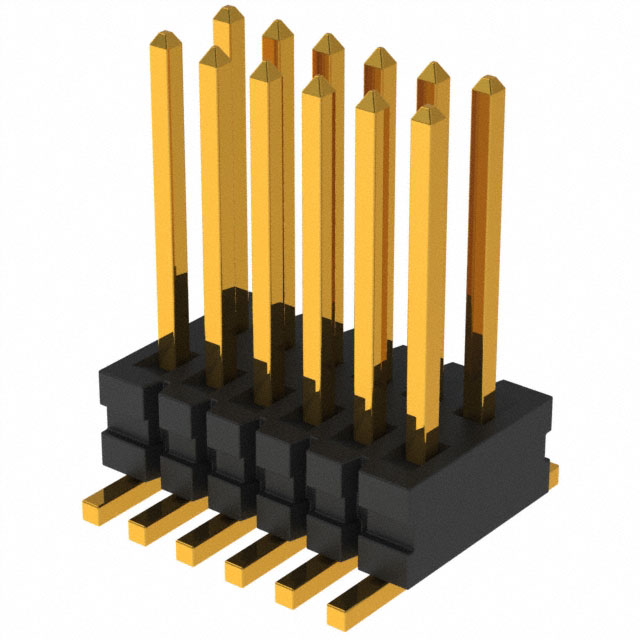

Samtec Inc. FTE-106-03-G-DV	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm	3 µin	0.076 µm	Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm	3.05 mm	0.12 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze
Samtec Inc. FTE-106-02-G-DV	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm	4.45 mm	0.175 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze
Samtec Inc. FTE-106-01-G-DV-ES-A-TR	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm			Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze	1.9 mm	0.075 in	Board Guide End Shrouds
Samtec Inc. FTE-106-02-G-DV-TR	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm	4.45 mm	0.175 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze
Samtec Inc. FTE-106-01-G-DV-A-TR	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm			Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze	1.9 mm	0.075 in	Board Guide

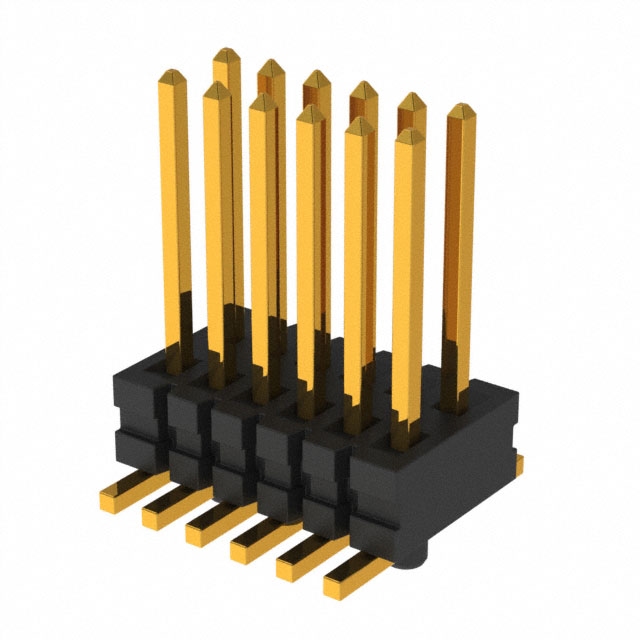

Samtec Inc. FTE-106-03-G-DV-A	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm	3.05 mm	0.12 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze			Board Guide
Samtec Inc. FTE-106-03-G-DH-K-TR	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount Right Angle	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header			3.05 mm	0.12 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze			Pick and Place	3.05 mm	0.12 in
Samtec Inc. FTE-106-02-G-DV-A	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header	0.055 in	1.4 mm	4.45 mm	0.175 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze			Board Guide

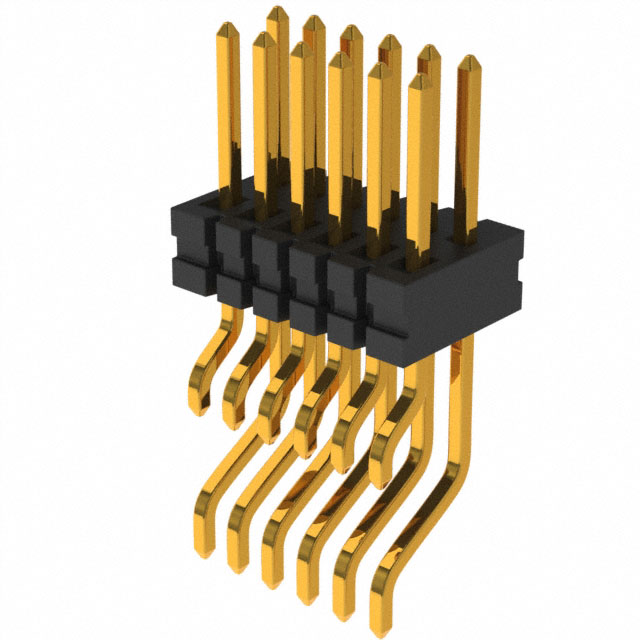

Samtec Inc. FTE-106-02-G-DH	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount Right Angle	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header			4.45 mm	0.175 in	Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze				3.05 mm	0.12 in
Samtec Inc. FTE-106-01-G-DH-K	2.7 A	Male Pin	10 çin	0.25 çm	Gold	12	Solder	Black	UL94 V-0	1.2 mm	0.047 in	2	Surface Mount Right Angle	0.031 in	0.8 mm			Square	All	-55 °C	125 °C	Header					Liquid Crystal Polymer (LCP)	Push-Pull	Gold	Unshrouded	Phosphor Bronze	1.9 mm	0.075 in	Pick and Place	3.05 mm	0.12 in
