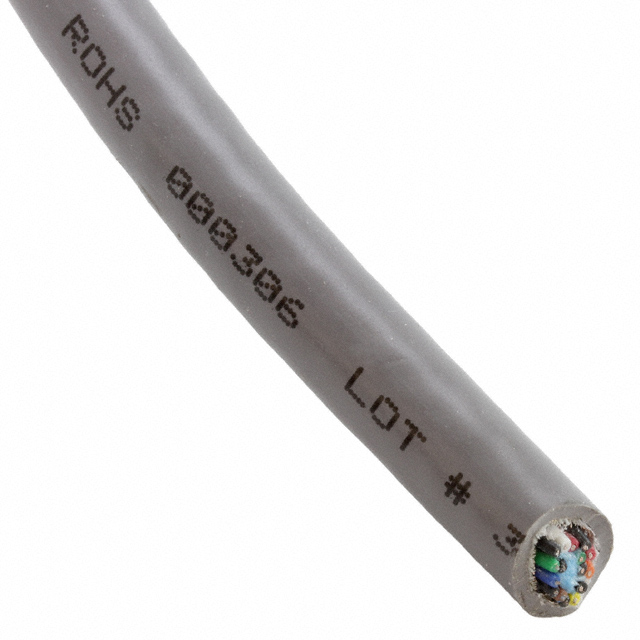

86408CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 16COND 28AWG 500'
| Part | Shield Coverage | Shield Material | Conductor Material | Number of Conductors | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket Color | Conductor Insulation | Voltage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Ratings | Cable Type | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | Copper Tinned | 16 | Biological Compatibility Drain Wire | 7 | 36 AWG | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft | 8.41 mm | 0.331 in | 28 AWG | 1.143 mm | 0.045 in | ISO 10993 UL Style 2661 | Multi-Pair | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | Copper Tinned | 16 | Biological Compatibility Drain Wire | 7 | 36 AWG | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 8.41 mm | 0.331 in | 28 AWG | 1.143 mm | 0.045 in | ISO 10993 UL Style 2661 | Multi-Pair | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
