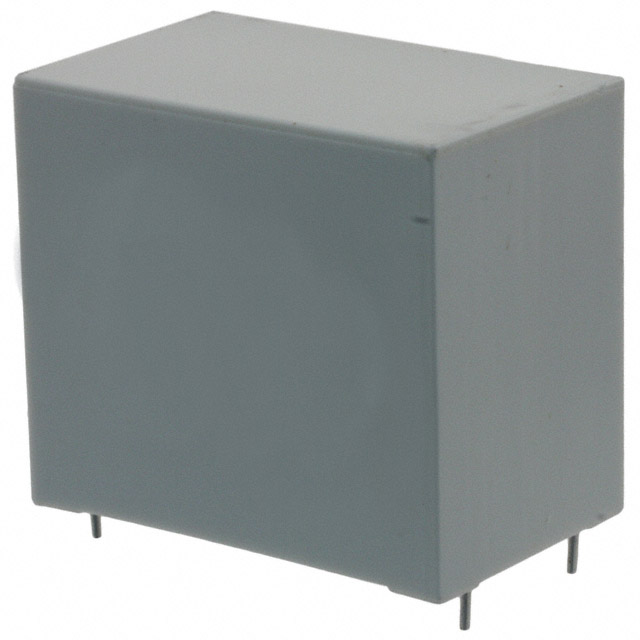

C4AEQB Series

Manufacturer: KEMET

Catalog

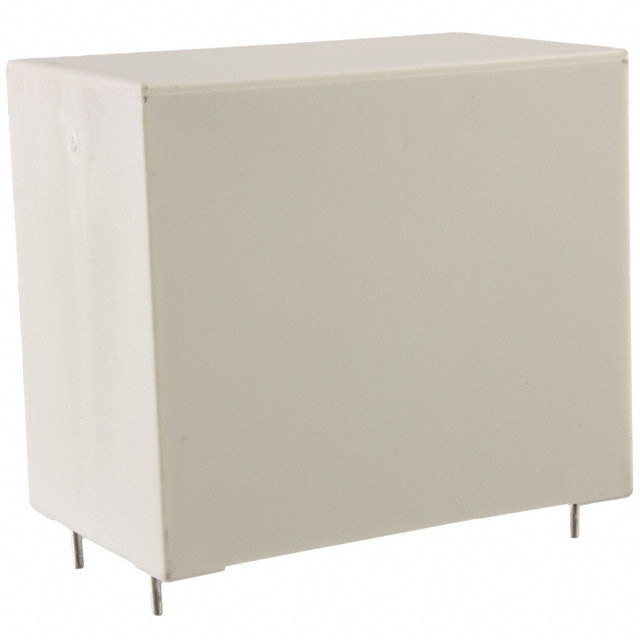

CAP FILM 20UF 1100V PP 5%( 57.5 X 30 X 45MM) PLASTIC RECTANGULAR CAN 52.5MM 0.0065 OHM 105°C BOX

Part	Dielectric Material	Height - Seated (Max)	Height - Seated (Max)	Lead Spacing	Lead Spacing	Mounting Type	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Tolerance	ESR (Equivalent Series Resistance)	Applications	Package / Case	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET C4AEQBW5200A3MJ	Polypropylene (PP) Metallized	1.783 in	45.3 mm	52.5 mm	2.067 in	Through Hole	1100 V	1.1 kV	57.5 mm	2.264 in	1.181 in	30 mm	PC Pins	5 %	6.5 mOhm	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads	20 µF	85 °C	-40 C
KEMET C4AEQBW5100A3JJ	Polypropylene (PP) Metallized			37.5 mm	1.476 in	Through Hole	1100 V	1.1 kV	42 mm	1.654 in	1.102 "	28 mm	PC Pins	5 %	6.3 mOhms	DC Filtering DC Link High Frequency Switching	Radial	10 µF	85 °C	-40 C	1.465 in	37.2 mm
KEMET C4AEQBU4330A11J	Polypropylene (PP) Metallized			27.5 mm	1.083 in	Through Hole	1100 V	1.1 kV					PC Pins	5 %	11.2 mOhm	DC Filtering DC Link High Frequency Switching	Radial	3.3 µF	85 °C	-40 C	1.15 "	29.2 mm
KEMET C4AEQBW5120A3LJ	Polypropylene (PP) Metallized			37.5 mm	1.476 in	Through Hole	1100 V	1.1 kV	42 mm	1.654 in	1.181 in	30 mm	PC Pins	5 %	5.3 mOhms	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads	12 µF	85 °C	-40 C	1.772 "	45 mm
KEMET C4AEQBU4500A12J	Polypropylene (PP) Metallized			27.5 mm	1.083 in	Through Hole	1100 V	1.1 kV	31.5 mm	1.24 in	0.866 in	22 mm	PC Pins	5 %	8.2 mOhms	DC Filtering DC Link High Frequency Switching	Radial	5 µF	85 °C	-40 C	1.465 in	37.2 mm
KEMET C4AEQBW5250A3NJ	Polypropylene (PP) Metallized			52.5 mm	2.067 in	Through Hole	1100 V	1.1 kV	2.264 in			1.378 in	PC Pins	5 %	5.2 mOhms	DC Filtering DC Link High Frequency Switching	Radial - 4 Leads	25 µF	85 °C	-40 C			57.5 mm	35 mm	1.969 in	50 mm
KEMET C4AEQBW5270A3NJ	Polypropylene (PP) Metallized			50 mm	1.969 in	Through Hole	1100 V	1.1 kV	2.264 in			1.378 in	PC Pins	5 %	4.9 mOhm	DC Filtering DC Link High Frequency Switching	Radial	27 µF	85 °C	-40 C			57.5 mm	35 mm	1.969 in	50 mm
