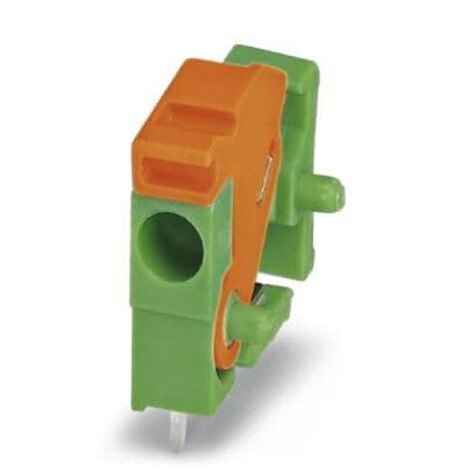

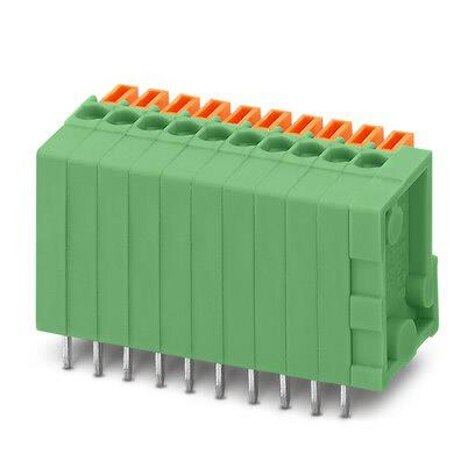

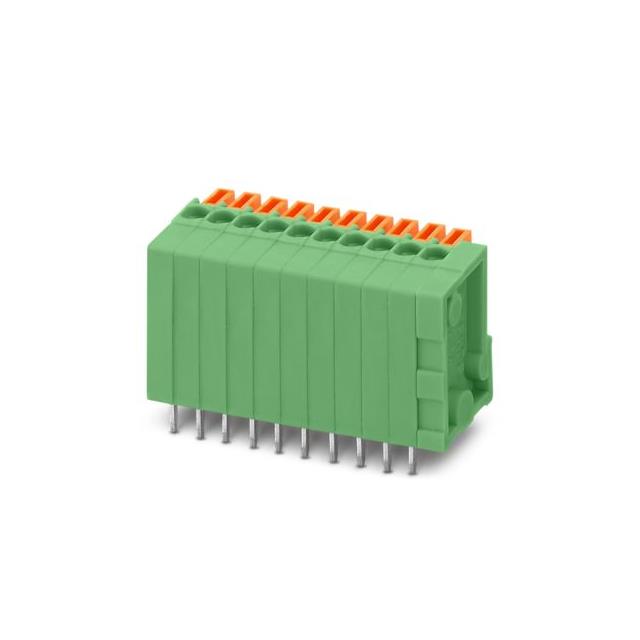

FFKDS Series
Manufacturer: Phoenix Contact
Beta
⌘K
FIXED TERMINAL BLOCKS FFKDS/V-2,54 WH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Wire Gauge [Min] | Wire Gauge [Max] | Color | Wire Termination | Features | Mating Orientation | Number of Levels | Positions Per Level | Mounting Type | Voltage | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | White | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | ||
Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | Red | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | 150 V | 6 A |
Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | Black | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | ||
 Phoenix Contact | Polyamide (PA) Nylon | 16 AWG | 26 AWG | Green | Screwless - Spring Cage Tension Clamp | Interlocking (Side) Lever Actuated | Horizontal with Board | 1 | 1 | Through Hole | 300 VDC | 6 A | |||
Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | Yellow | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | ||
 Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | Gray | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | 6 A | |
Phoenix Contact | -40 C | 100 °C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | 19.5 AWG | 26 AWG | Blue | Leg Spring Push-In Spring | Lever Actuated | Vertical with Board | 1 | 1 | Through Hole | 150 V | 6 A |
