228217 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

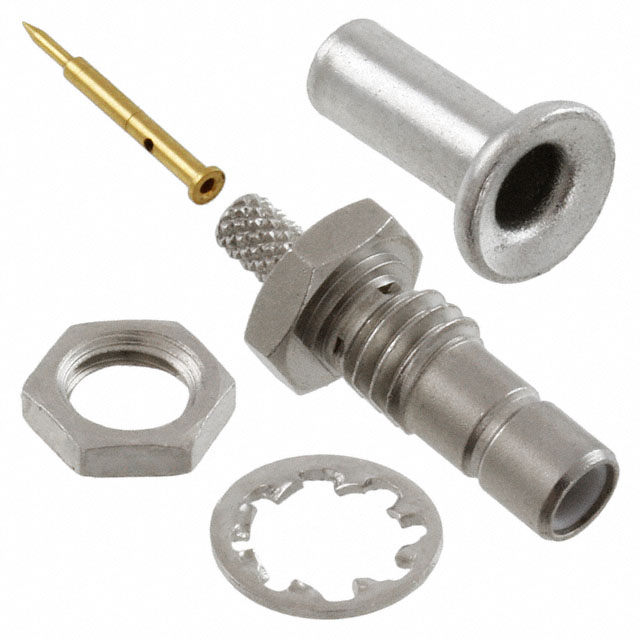

CONN SMB JACK STR 50 OHM CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Number of Ports | Shield Termination | Connector Style | Mating Cycles | Center Contact Plating | Includes | Body Finish | Mounting Feature | Fastening Type | Connector Type | Voltage Rating | Contact Termination | Impedance | Housing Color | Dielectric Material | Insertion Loss | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -65 ░C | 165 °C | 4 GHz | 1 | Crimp | SMB | 500 | Gold | 1 Connector 1 Contact 1 Lockwasher 1 Nut 2 Ferrule | Nickel | Bulkhead - Front Side Nut | Snap-On | Jack Male Pin | 335 V | Crimp | 50 Ohms | Silver | Polytetrafluoroethylene (PTFE) | 0.3 dB | 188 316 RG-174 |
