408-017 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 17POS 0.200

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Card Thickness	Card Thickness	Gender	Contact Material	Number of Rows [custom]	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Type	Mounting Type	Features

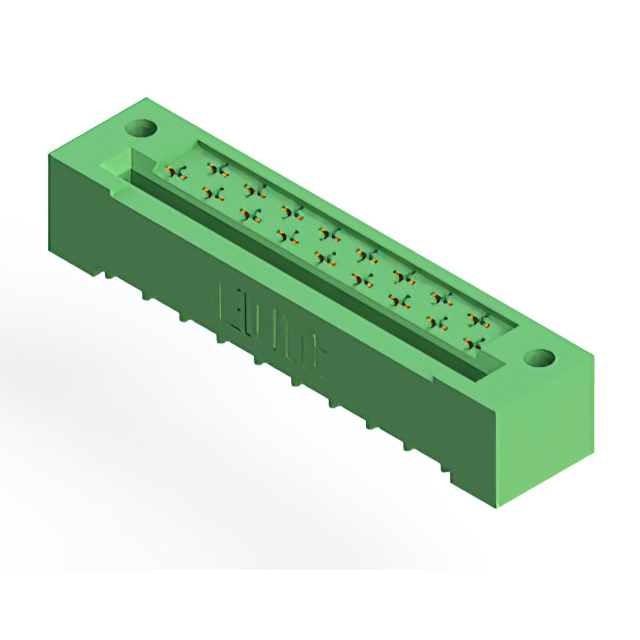

EDAC Inc. 408-017-502-112	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole

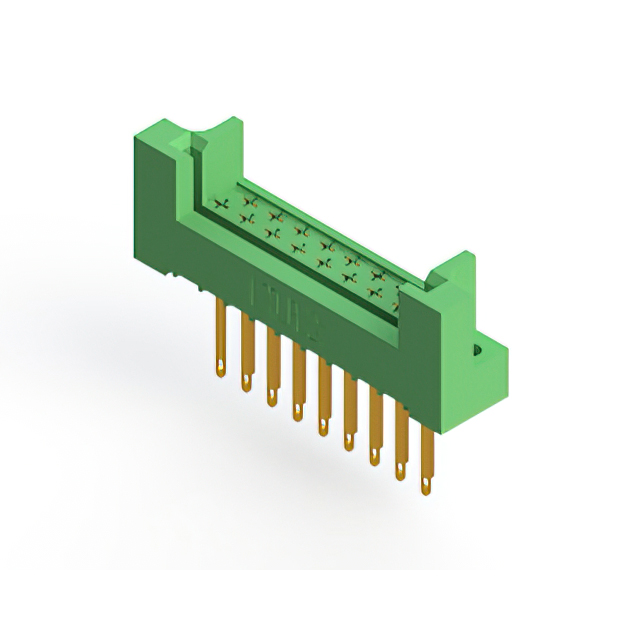

EDAC Inc. 408-017-540-222	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	2.36 mm	0.093 "	Female	Copper Alloy	2	Wire Wrap	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides

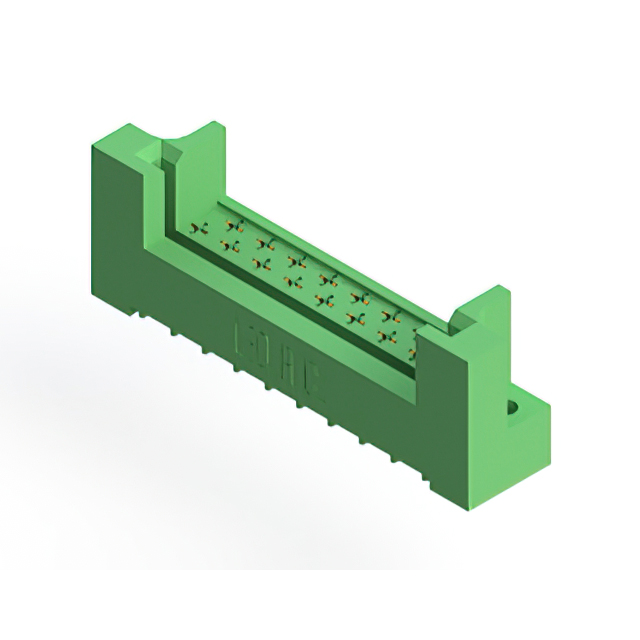

EDAC Inc. 408-017-525-212	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides

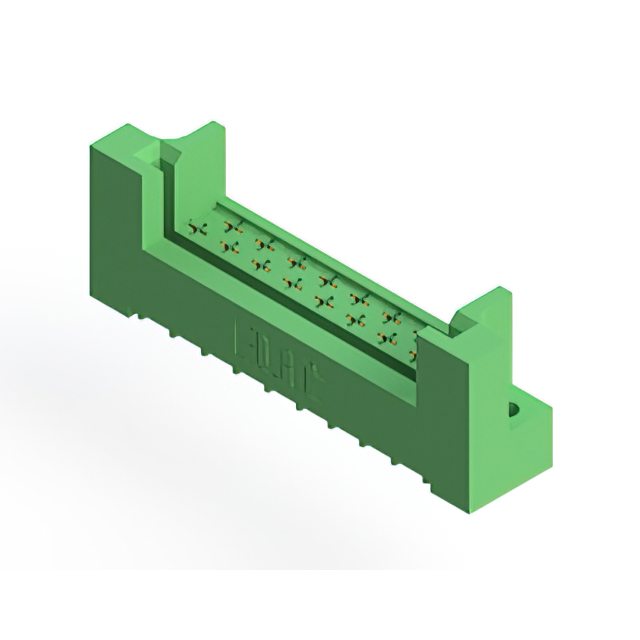

EDAC Inc. 408-017-502-222	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	2.36 mm	0.093 "	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides

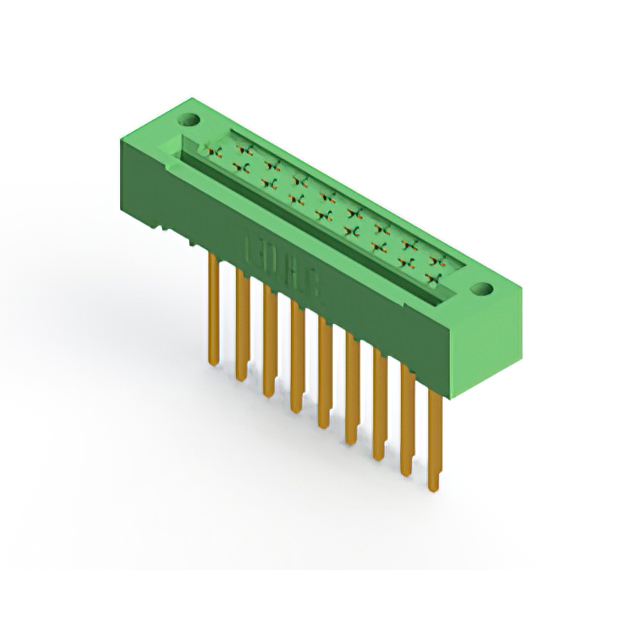

EDAC Inc. 408-017-542-112	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Wire Wrap	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole
EDAC Inc. 408-017-541-112	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Wire Wrap	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole
EDAC Inc. 408-017-502-212	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides

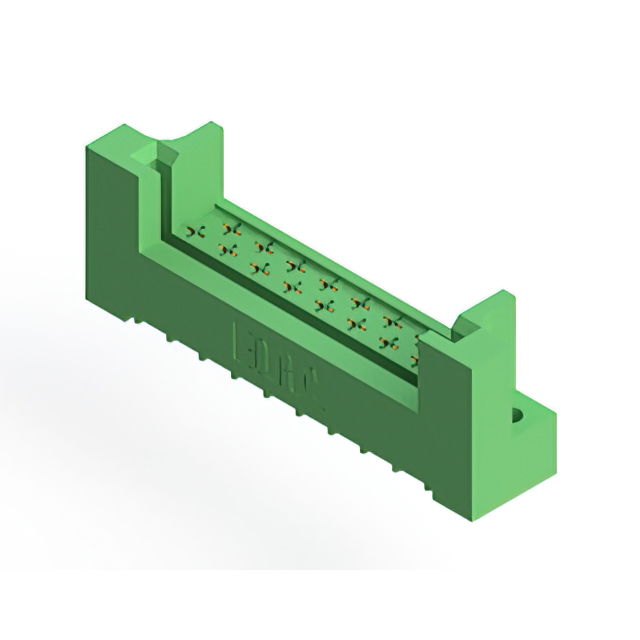

EDAC Inc. 408-017-520-212	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides

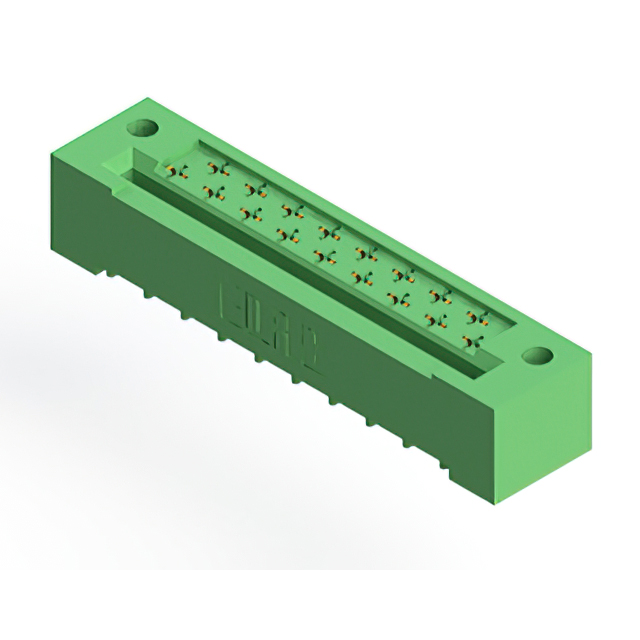

EDAC Inc. 408-017-522-112	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	1.57 mm	0.062 in	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole
EDAC Inc. 408-017-520-222	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Gold	Green	2.36 mm	0.093 "	Female	Copper Alloy	2	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	5.08 mm	0.2 in	0.25 Ám	10 Áin	Non Specified - Dual Edge	Panel Mount Through Hole	Card Guides
