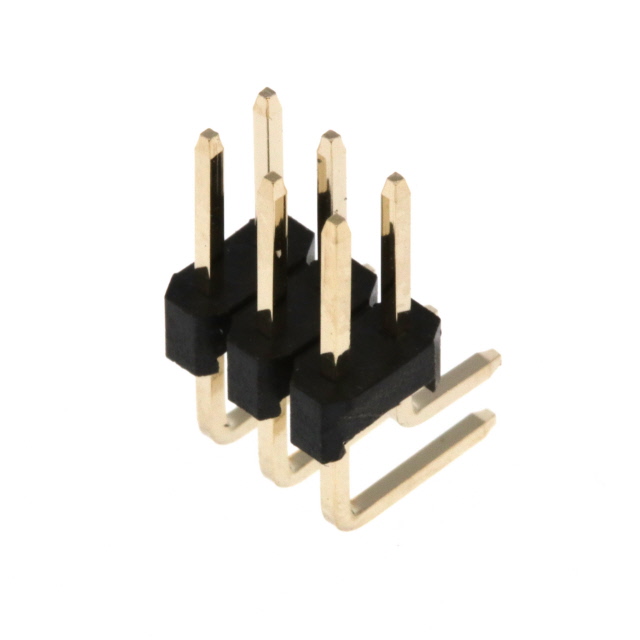

PR20203HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, DUAL ROW, .100"
| Part | Fastening Type | Termination | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating | Contact Length - Mating | Mounting Type | Connector Type | Contact Material | Contact Shape | Number of Positions Loaded | Insulation Color | Insulation Material | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Push-Pull | Solder | Flash | 0.098 " | 2.5 mm | 2 | 0.1 in | 2.54 mm | 6 mm | 0.236 in | Right Angle Through Hole | Header | Copper Zinc | Square | All | Black | Polyethylene | Male Pin | 6 | -40 C | 105 ░C | 0.118 in | 3 mm | 0.1 " | 2.54 mm | Gold | Unshrouded |
