R14201 Series

Catalog

BNC / STRAIGHT PLUG CLAMP TYPE C

Part	Mating Cycles	Voltage Rating	Body Finish	Dielectric Material	Insertion Loss	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Shield Termination	Fastening Type	Cable Group	Connector Style	Mounting Type	Frequency - Max [Max]	Housing Color	Impedance	Connector Type	Contact Termination	Center Contact Material	Number of Ports	Cable Group

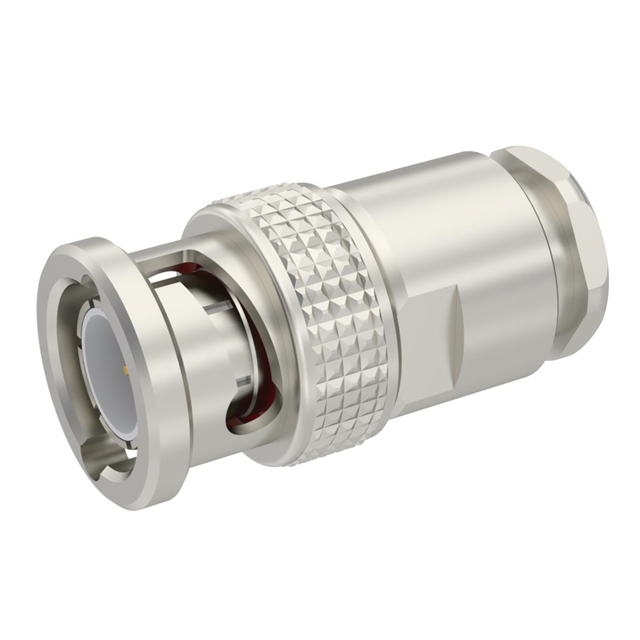

Radiall USA, Inc. R142016000	500	500 V	Nickel	Polytetrafluoroethylene (PTFE)	0.2 dB	Gold	-65 ░C	165 °C	Brass	Clamp	Bayonet Lock	RG-59	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1
Radiall USA, Inc. R142016000W	500	500 V	Nickel	Polytetrafluoroethylene (PTFE)	0.2 dB	Gold	-65 ░C	165 °C	Brass	Clamp	Bayonet Lock	RG-59	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1

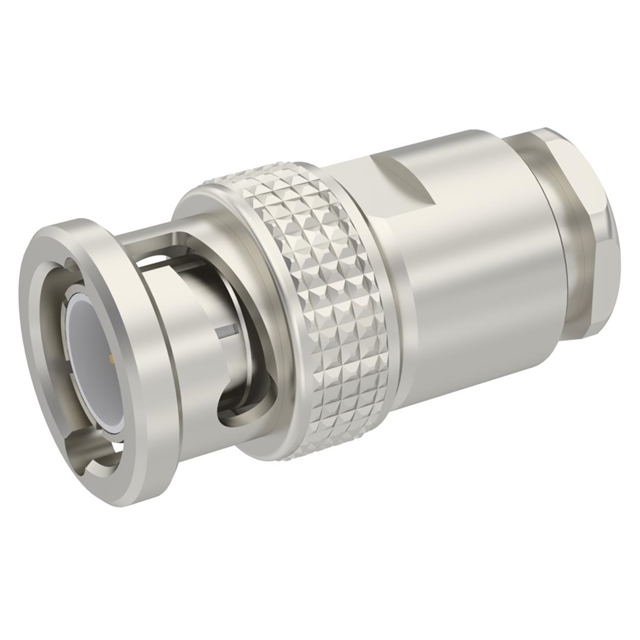

Radiall USA, Inc. R142016161		500 V	Nickel	Polypropylene (PP)	0.2 dB	Gold	-35 °C	70 °C	Brass	Clamp	Bayonet Lock	RG-59	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1
Radiall USA, Inc. R142016161W		500 V	Nickel	Polypropylene (PP)	0.2 dB	Gold	-35 °C	70 °C	Brass	Clamp	Bayonet Lock	RG-59	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1

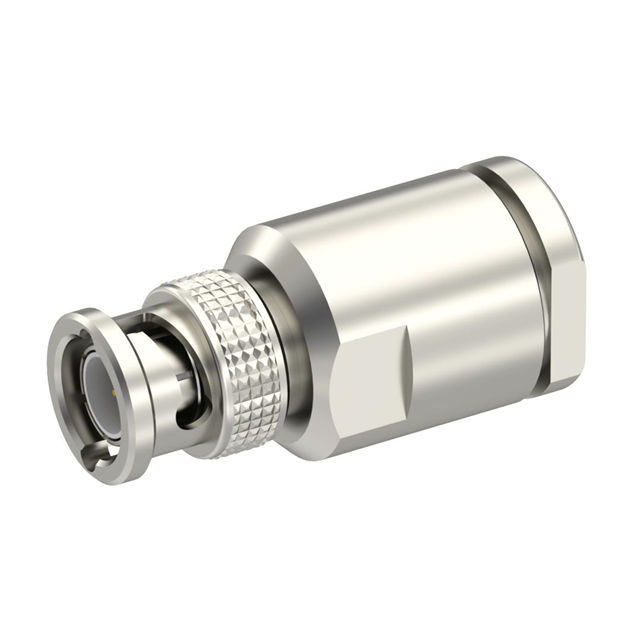

Radiall USA, Inc. R142017000	500	500 V	Nickel	Polytetrafluoroethylene (PTFE)	0.2 dB	Gold	-65 ░C	165 °C	Brass	Clamp	Bayonet Lock	RG-6A	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1
Radiall USA, Inc. R142018000W	500	500 V	Nickel	Polytetrafluoroethylene (PTFE)	0.2 dB	Gold	-65 ░C	165 °C	Brass	Clamp	Bayonet Lock	RG-11	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1	144 216

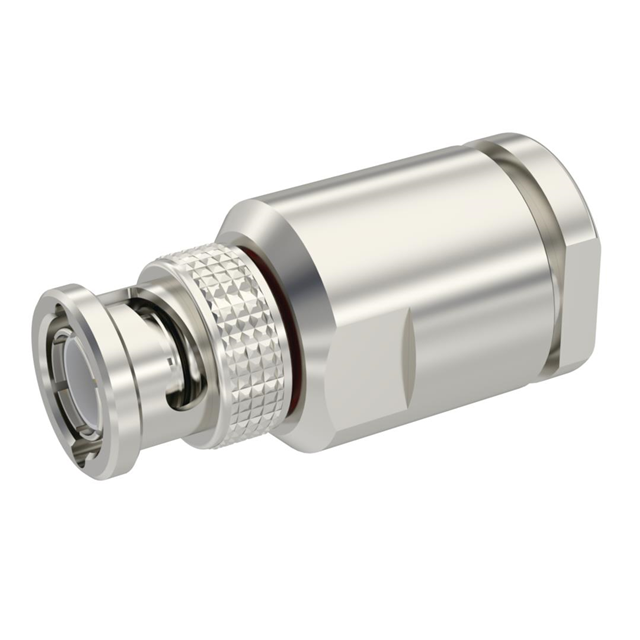

Radiall USA, Inc. R142018000	500	500 V	Nickel	Polytetrafluoroethylene (PTFE)	0.2 dB	Gold	-65 ░C	165 °C	Brass	Clamp	Bayonet Lock	RG-11	BNC	Free Hanging (In-Line)	1.5 GHz	Silver	75 Ohms	Plug Male Pin	Solder	Brass	1	144 216
