NY Series
Manufacturer: Amphenol Anytek
Beta
⌘K

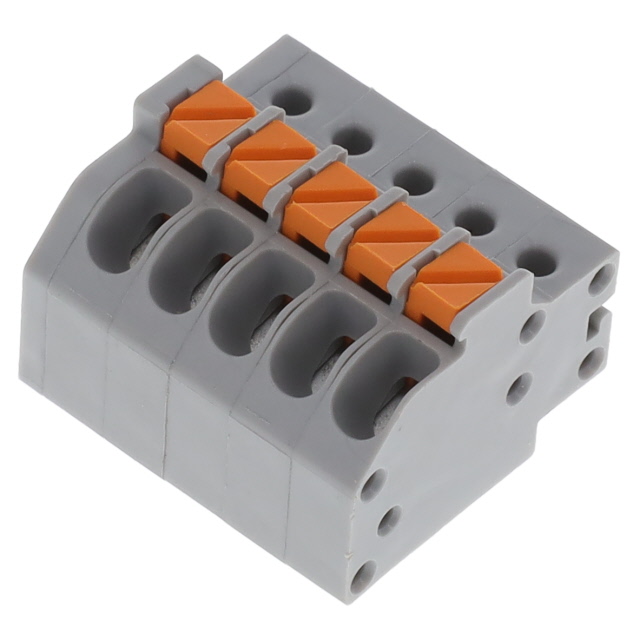

NY-3.5-5P DARK GRAY (RAL7004/P)
| Part | Color | Housing Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - UL | Number of Levels | Current - UL | Contact Material | Wire Strip Length [Min] | Wire Strip Length [Max] | Termination Style | Type | Contact Mating Finish | Mounting Type | Positions Per Level | Plug Wire Entry | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | Gray | Thermoplastic | UL94 V-0 | -40 °C | 115 °C | 150 V | 1 | 2 A | Stainless Steel | 9 mm | 10 mm | Push-In Spring Screwless - Leg Spring | Plug for Unshrouded Header | Tin | Free Hanging (In-Line) | 5 | 90 ° | 3.5 mm | 0.138 in |
