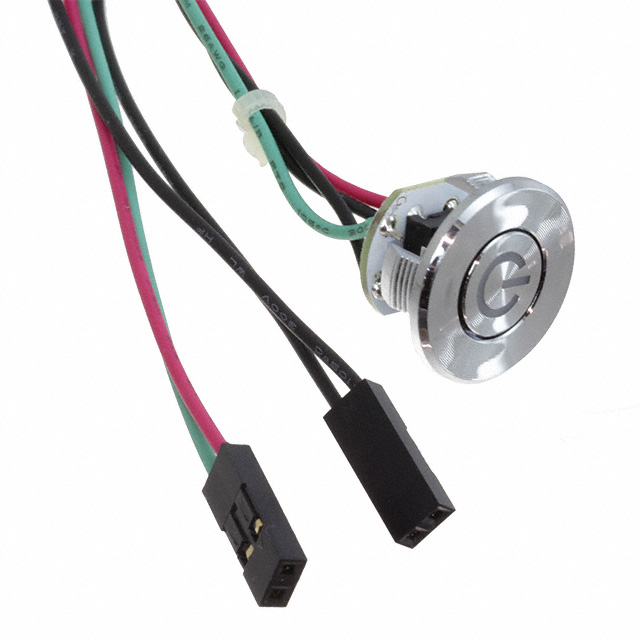

TL1275 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Type | Switch Function | Illumination Type, Color | Mounting Type | Outline [diameter] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Orientation | Operating Force | Contact Rating @ Voltage | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | 100000 Cycles | Flush | Off-Mom | LED Red | Panel Mount | 19 mm | SPST-NO | -25 °C | 70 °C | Top Actuated | 350 gf | 0.05 A 12 VDC | Illuminated |
 E-Switch | 0.25 mm | 100000 Cycles | Flush | Off-Mom | Blue LED | Panel Mount | 19 mm | SPST-NO | -25 °C | 70 °C | Top Actuated | 350 gf | 0.05 A 12 VDC | Illuminated |
E-Switch | 0.25 mm | 100000 Cycles | Flush | Off-Mom | Green/Red LED | Panel Mount | 19 mm | SPST-NO | -25 °C | 70 °C | Top Actuated | 350 gf | 0.05 A 12 VDC | Illuminated |
