CMLB053T Series

Catalog

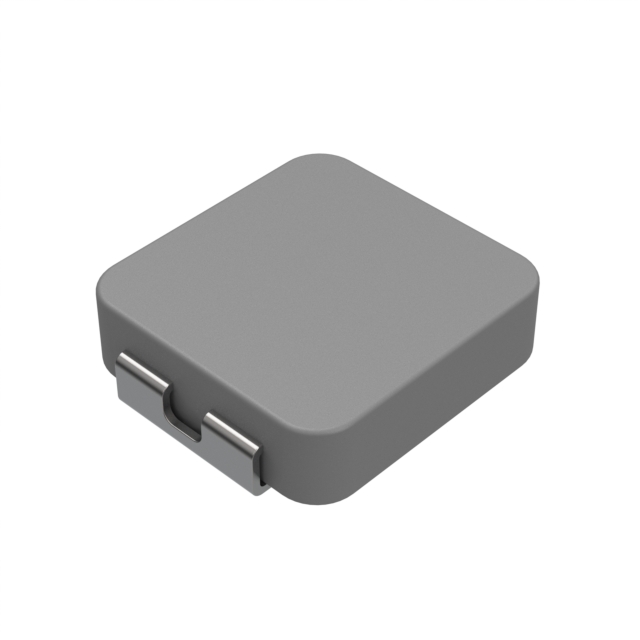

FIXED IND 3.3UH 5.4A 38MOHM SMD

Part	DC Resistance (DCR)	Shielding	Inductance	Current Rating (Amps)	Material - Core	Tolerance	Package / Case	Inductance Frequency - Test	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLB053T-3R3MS	38 mOhm	Shielded	3.3 µH	5.4 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	5 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C
Delta Electronics/Cyntec CMLB053T-R47MS		Shielded	470 nH	12.2 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm		4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C	8 mOhm
Delta Electronics/Cyntec CMLB053T-4R7MS		Shielded	4.7 ÁH	5 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	3.5 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C
Delta Electronics/Cyntec CMLB053T-2R2MS	29 mOhm	Shielded	2.2 µH	6.3 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	6.5 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C
Delta Electronics/Cyntec CMLB053T-R35MS		Shielded	350 nH	13.7 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	13 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C	6.3 mOhm
Delta Electronics/Cyntec CMLB053T-1R0MS		Shielded	1 µH	9.8 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	8.5 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C	12 mOhm
Delta Electronics/Cyntec CMLB053T-R68MS		Shielded	0.68 µH	11 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	10 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C	9.2 mOhm
Delta Electronics/Cyntec CMLB053T-R22MS		Shielded	220 nH	17 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	17 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C	3.9 mOhm
Delta Electronics/Cyntec CMLB053T-6R8MS	115 mOhm	Shielded	6.8 µH	3.2 A	Metal	20 %	Nonstandard	100 kHz	Surface Mount	0.118 "	3 mm	3.2 A	4.85 mm	0.185 in	0.191 in	4.7 mm	-55 C	125 °C
