680S3W3 Series
Manufacturer: NorComp Inc.
Beta
⌘K

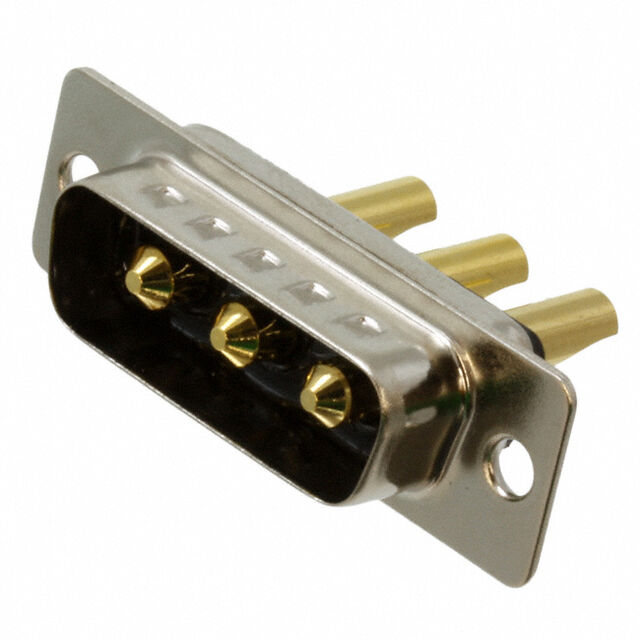

CONN D-SUB PLUG 3POS PNL MNT
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Flange Feature | Number of Positions | Contact Type | Features | Material Flammability Rating | Current Rating (Amps) | Connector Style | Shell Material, Finish | Shell Size, Connector Layout | Number of Rows | Contact Finish | Contact Finish Thickness | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | Black | 155 C | -55 C | IP67 - Dust Tight Waterproof | Housing/Shell (Unthreaded) | 3 | Power | Grounding Indents | UL94 V-0 | 20 A | Combo D-Sub | Nickel Plated Steel | 2 (DA A) - 3W3 | 1 | Gold | Flash | Plug Male Pins | Panel Mount |
