80160 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

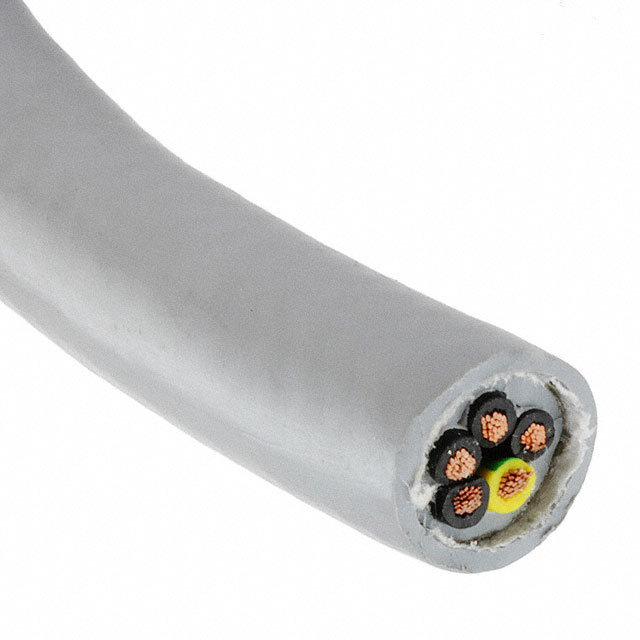

MULTI-CONDUCTOR CABLES 12 AWG 5 CONDUCTOR 600V BRAID, MPPE, ZERO-HALOGEN 100 FT SPOOL SLATE
| Part | Shield Coverage | Shield Material | Jacket Color | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Slate | 5 | Copper Tinned | Polyurethane (PU) | 11.68 mm | 0.46 in | Polyphenylene Ether (PPE) | Multi-Conductor | 0.0319 in | 0.81 mm | 12 AWG | 90 °C | -50 °C | Braid | 34 | 168 | 600 V | 100 ft | 30.5 m |
