1478924 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

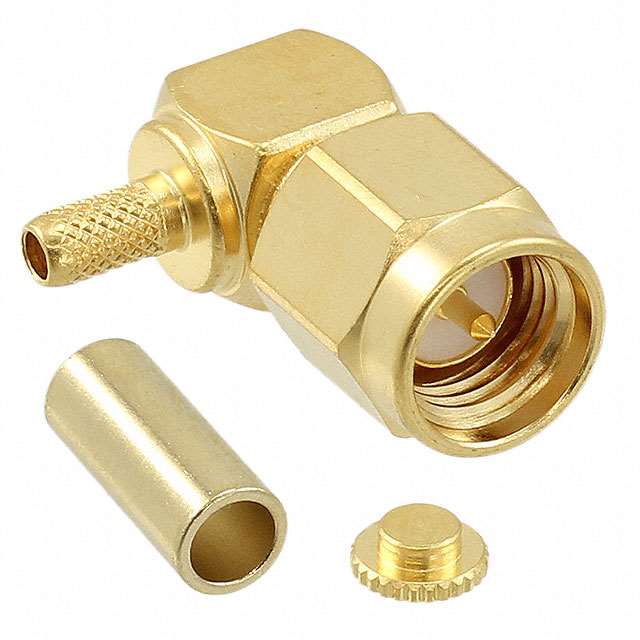

CONN SMA PLUG R/A 50 OHM SOLDER
| Part | Dielectric Material | Connector Style | Center Contact Material | Housing Color | Shield Termination | Frequency - Max [Max] | Center Contact Plating | Body Finish | Connector Type | Body Material | Includes | Number of Ports | Contact Termination | Impedance | Mating Cycles | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polytetrafluoroethylene (PTFE) | SMA | Brass | Gold | Crimp | 12.4 GHz | Gold | Gold | Male Pin Plug | Stainless Steel | 1 Connector 1 End Cap 1 Ferrule | 1 | Solder | 50 Ohms | 500 | Free Hanging (In-Line) Right Angle | 188A 316 RG-174A |
