FSM1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Contact Rating @ Voltage	Switch Function	Mounting Type	Actuator Type	Circuit	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Operating Force	Illumination	Termination Style	Actuator Height off PCB, Vertical	Features	Ingress Protection

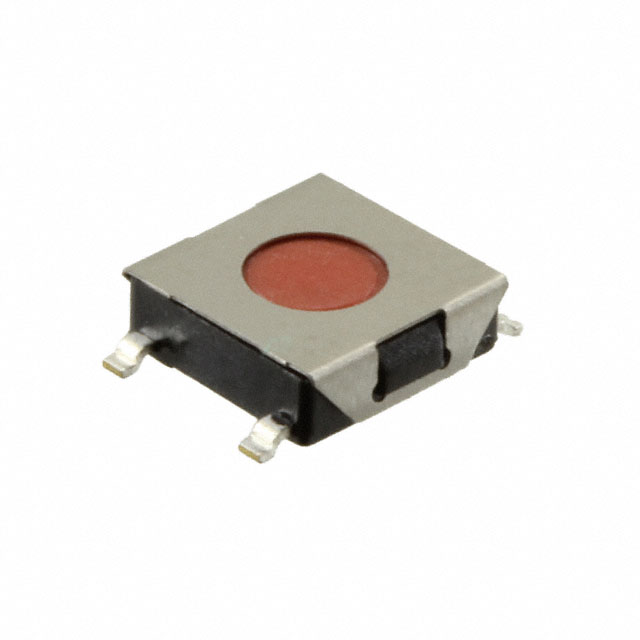

TE Connectivity AMP Connectors FSM1JELGTR	1000000 Cycles	0.25 mm	Thermoplastic	85 °C	-35 °C	6.2 mm	6.2 mm	0.05 A 12 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	2 mm	Top Actuated	160 gf	Non-Illuminated	Gull Wing

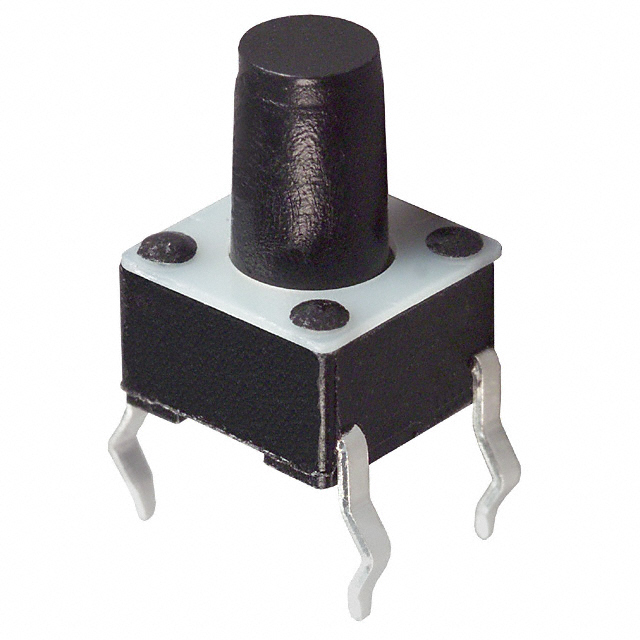

TE Connectivity AMP Connectors FSM18J	100000 Cycles	0.25 mm	Acetal	85 °C	-35 °C	6 mm	6 mm	0.05 A 24 VDC	Off-Mom	Through Hole	Standard	SPST-NO		Top Actuated	160 gf	Non-Illuminated	PC Pin	8.5 mm

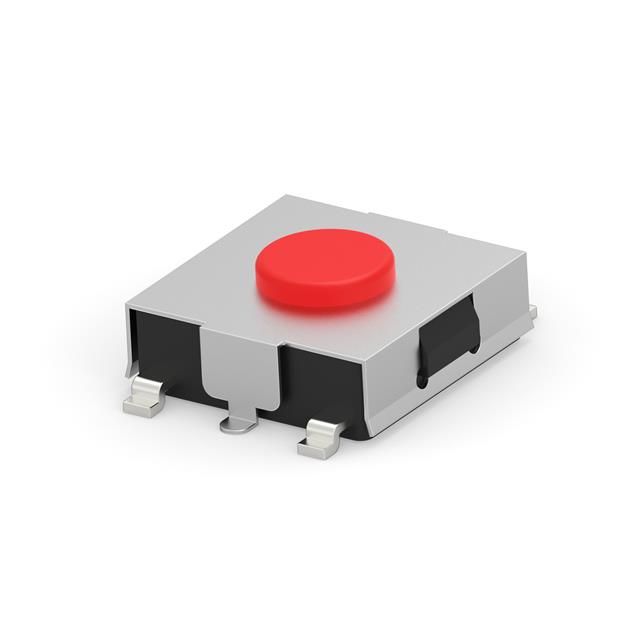

TE Connectivity AMP Connectors FSM1JELGETR	1000000 Cycles	0.25 mm	Thermoplastic	85 °C	-35 °C	6.2 mm	6.2 mm	0.05 A 12 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	2 mm	Top Actuated	160 gf	Non-Illuminated	Gull Wing		Grounding Pin

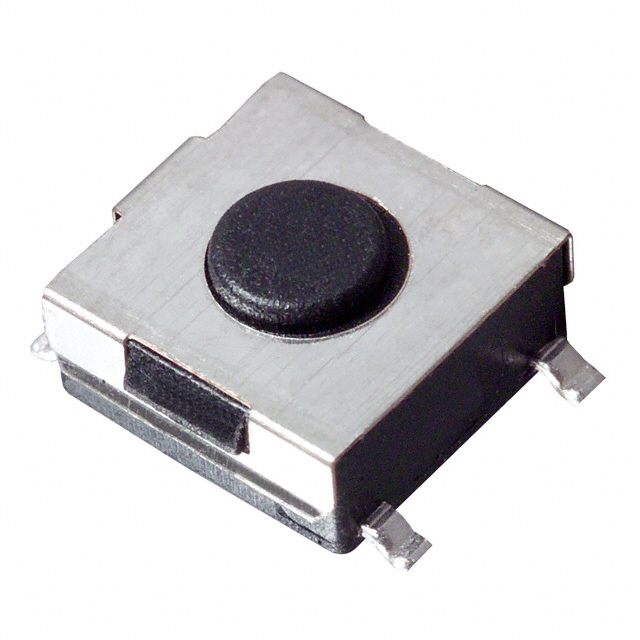

TE Connectivity AMP Connectors FSM1LP	100000 Cycles	0.25 mm	Polyphthalamide (PPA)	85 °C	-35 °C	6 mm	6 mm	0.05 A 24 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	3.1 mm	Top Actuated	160 gf	Non-Illuminated	Gull Wing		Grounding Pin

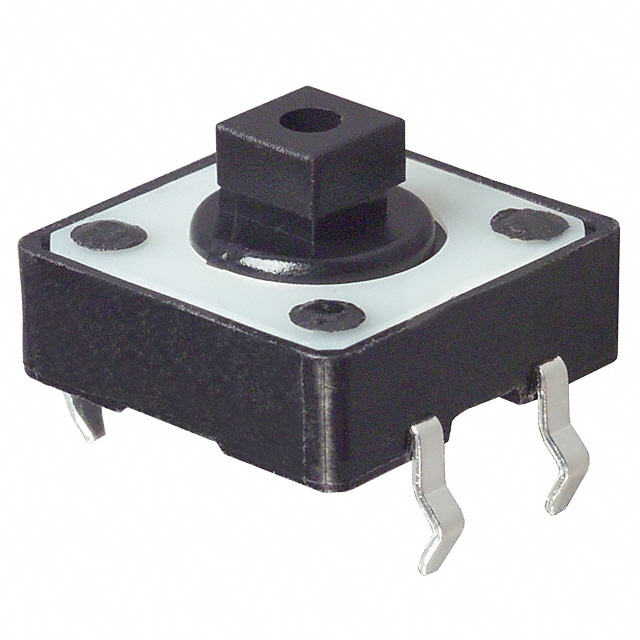

TE Connectivity AMP Connectors FSM103	100000 Cycles	0.3 mm	Acetal	85 °C	-35 °C	12 mm	12 mm	0.05 A 24 VDC	Off-Mom	Through Hole	Plunger for Cap	SPST-NO	7.28 mm	Top Actuated	160 gf	Non-Illuminated	PC Pin
TE Connectivity AMP Connectors FSM14J	100000 Cycles	0.25 mm	Acetal	85 °C	-35 °C	6 mm	6 mm	0.05 A 24 VDC	Off-Mom	Through Hole	Standard	SPST-NO		Top Actuated	160 gf	Non-Illuminated	PC Pin	13 mm

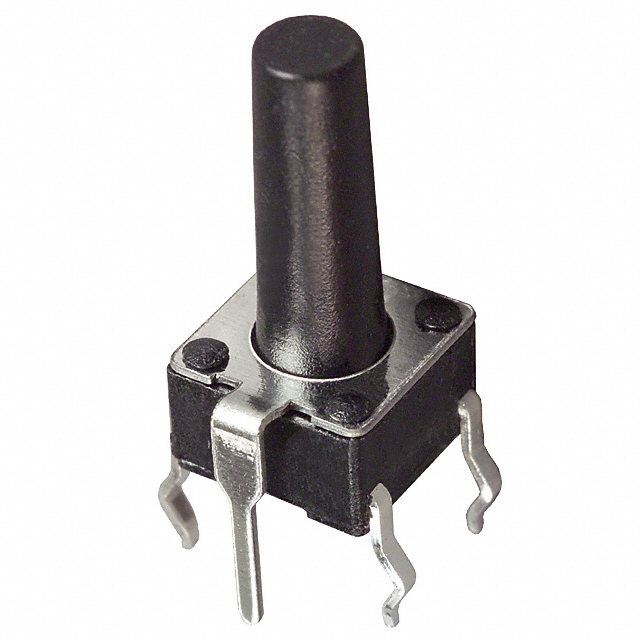

TE Connectivity AMP Connectors FSM13J	100000 Cycles	0.25 mm	Acetal	85 °C	-35 °C	6 mm	6 mm	0.05 A 24 VDC	Off-Mom	Through Hole	Standard	SPST-NO		Top Actuated	160 gf	Non-Illuminated	PC Pin	13 mm	Grounding Pin

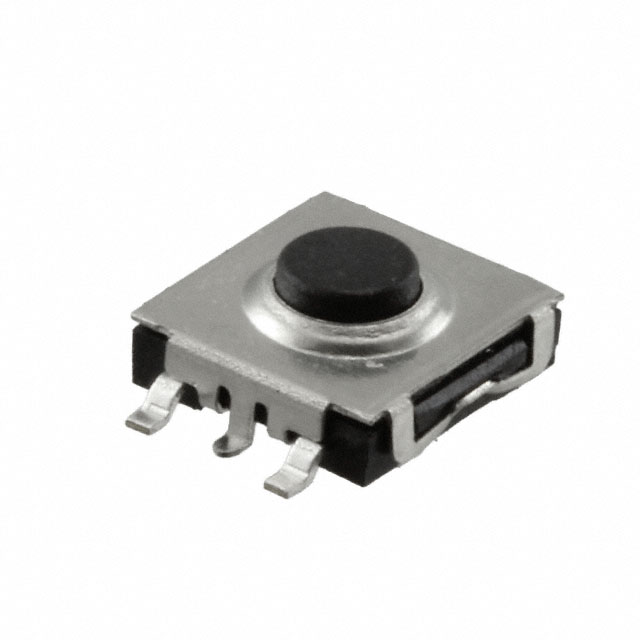

TE Connectivity AMP Connectors FSM1JSSMTR	1000000 Cycles	0.35 mm	Thermoplastic	85 °C	-35 °C	7.6 mm	7.3 mm	0.05 A 24 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	3.3 mm	Top Actuated	160 gf	Non-Illuminated	Gull Wing		Sealed - Fully	IP67 - Dust Tight Waterproof
TE Connectivity AMP Connectors FSM1LPATR	100000 Cycles	0.25 mm	Polyphenylene Sulfide (PPS)	85 °C	-35 °C	6 mm	6 mm	0.05 A 24 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	3.1 mm	Top Actuated	260 gf	Non-Illuminated	Gull Wing

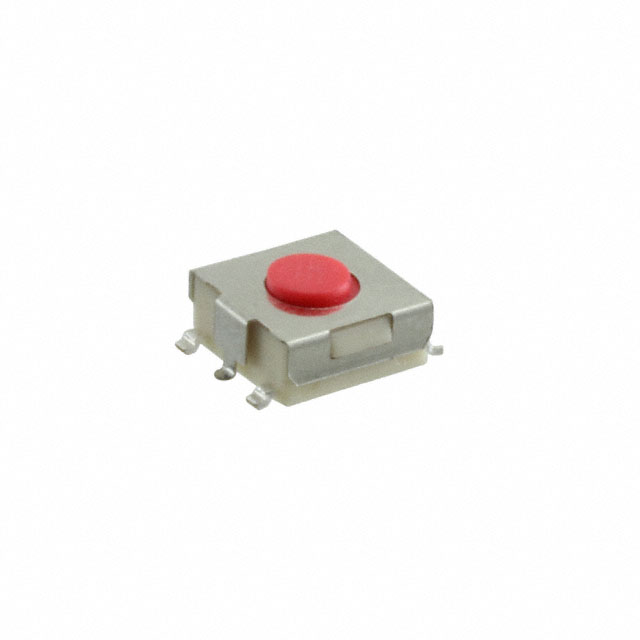

TE Connectivity AMP Connectors FSM1LPSTR	1000000 Cycles	0.25 mm	Polyamide (PA6T) Nylon 6T	105 ░C	-40 C	6.2 mm	6 mm	0.05 A 24 VDC	Off-Mom	Surface Mount	Standard	SPST-NO	3.1 mm	Top Actuated	160 gf	Non-Illuminated	Gull Wing		Grounding Pin
