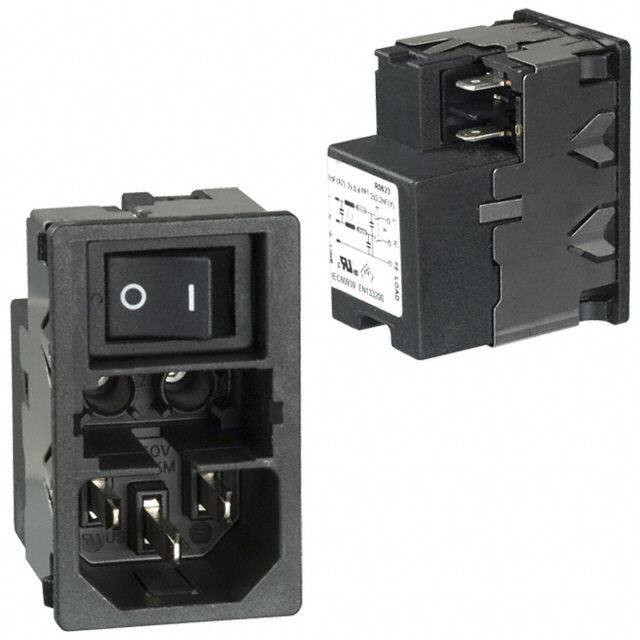

KMF1.1191 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR
| Part | Filter Type | Current Rating - Filter | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Current Rating - Appliance Inlet | Ingress Protection | Approval Agency | Switch Features | Fuse Holder, Drawer | Material Flammability Rating | Connector Style | Connector Type | Mounting Type | Termination | Termination | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Voltage Rating - Appliance Inlet | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial | 10 A | 2.5 mm | 0.039 in | 0.098 in | 1 mm | 10 A | IP40 | CCC cULus ENEC | Switch On-Off | Drawer Sold Separate | UL94 V-0 | IEC 320-C14 | Receptacle Male Blades - Module | Panel Mount Snap-In | 0.189 " | 4.8 mm | Quick Connect | 28.8 mm | 47.8 mm | Shielded | 250 VAC |
