725-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Mounting Type	Read Out	Termination	Number of Positions	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Color	Contact Material	Number of Positions/Bay/Row	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination Rows	Number of Rows

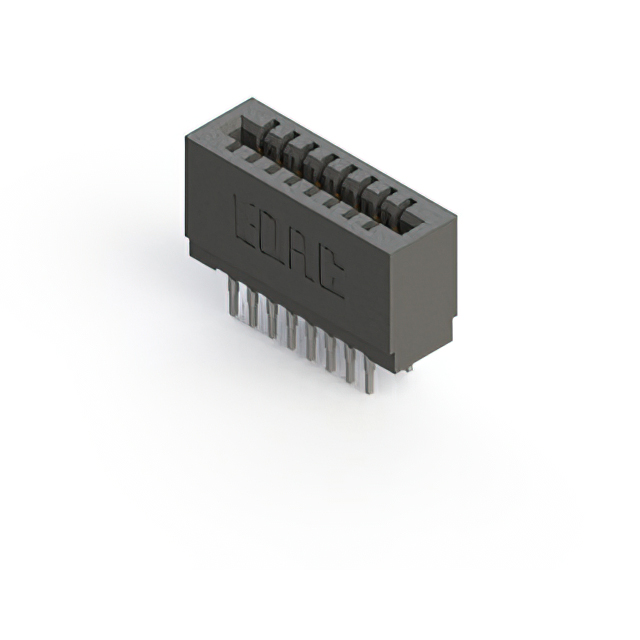

EDAC Inc. 725-016-541-201	Polyester Thermoplastic	2	Gold	Through Hole	Dual	Press-Fit Wire Wrap	16	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	8	2	-40 C	105 ░C	Cantilever

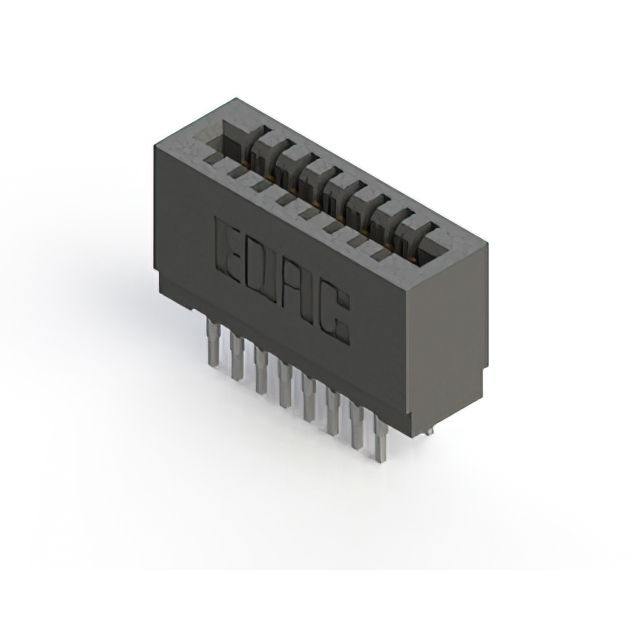

EDAC Inc. 725-016-522-201	Polyester Thermoplastic	2	Gold	Through Hole	Dual	Press-Fit	16	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	8	2	-40 C	105 ░C	Cantilever

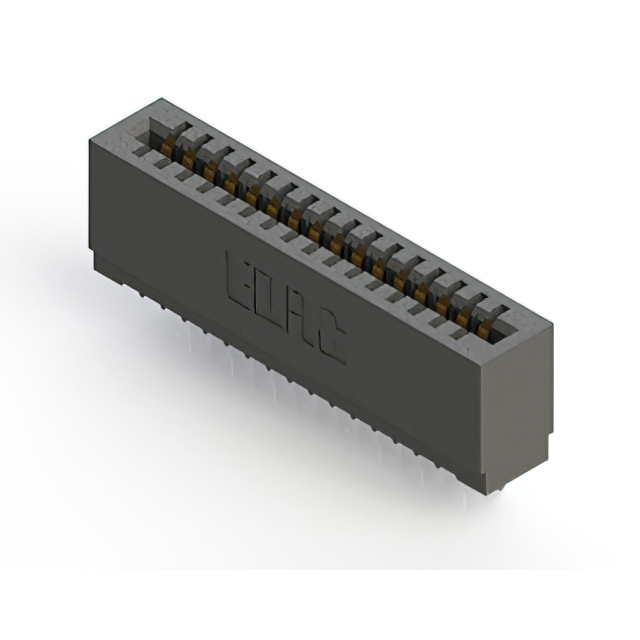

EDAC Inc. 725-016-525-101	Polyester Thermoplastic		Gold	Through Hole	Single	Press-Fit	16	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	16		-40 C	105 ░C	Cantilever	1	1

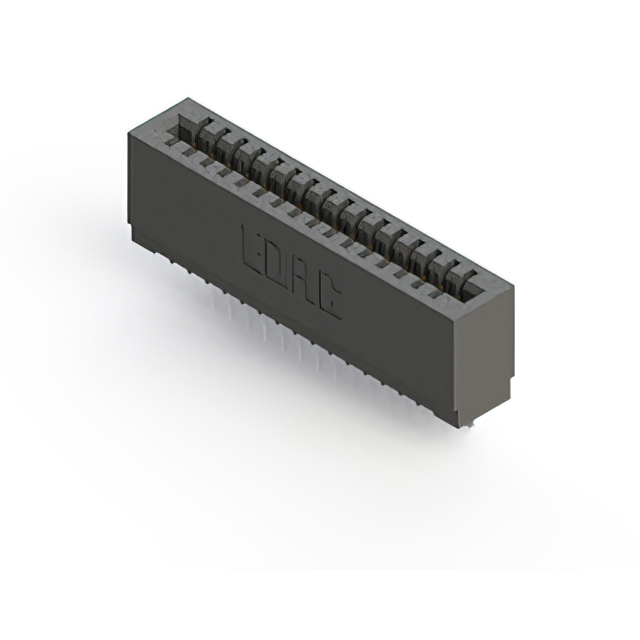

EDAC Inc. 725-016-540-101	Polyester Thermoplastic		Gold	Through Hole	Single	Press-Fit Wire Wrap	16	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	16		-40 C	105 ░C	Cantilever	1	1
EDAC Inc. 725-016-520-201	Polyester Thermoplastic	2	Gold	Through Hole	Dual	Press-Fit	16	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	8	2	-40 C	105 ░C	Cantilever
EDAC Inc. 725-016-560-201	Polyester Thermoplastic	2	Gold	Through Hole	Dual	Press-Fit	16	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	8	2	-40 C	105 ░C	Cantilever Make Before Break

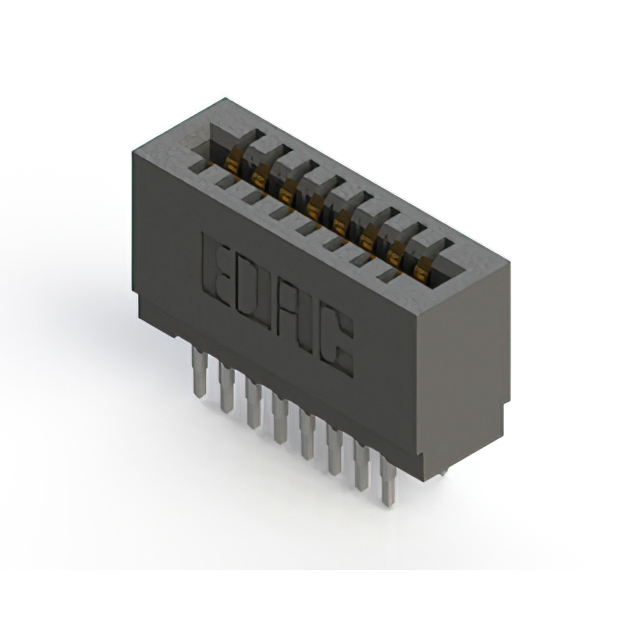

EDAC Inc. 725-016-525-201	Polyester Thermoplastic	2	Gold	Through Hole	Dual	Press-Fit	16	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Copper Alloy	8	2	-40 C	105 ░C	Cantilever
