2307728 Series

Catalog

14P,2MM,B-B,REC,DRHZ,SMD,SN,TR

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Color	Contact Finish - Post	Mounting Type	Contact Material	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Type	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions

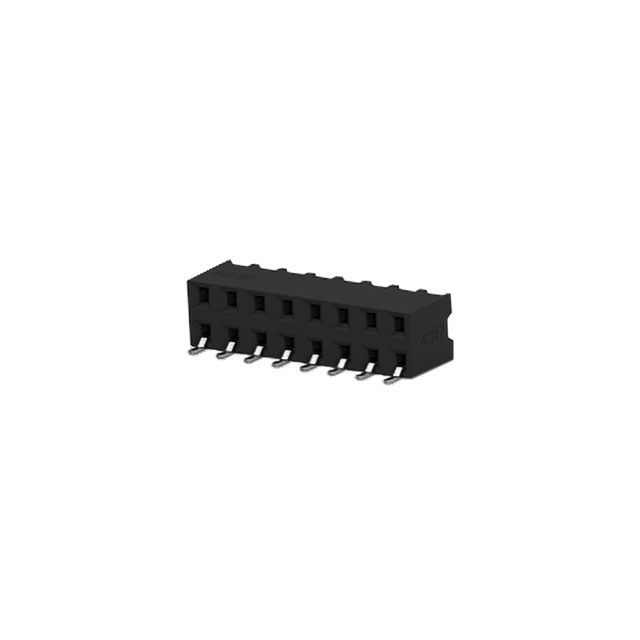

TE Connectivity Raychem Cable Protection 1-2307728-4	0.161 in	4.1 mm	3 µm	118.1 µin	Square	Black	Tin	Surface Mount Right Angle	Phosphor Bronze	Push-Pull	0.079 in	2 mm	14	118.1 µin	3 µm	2	2 A	0.079 in	2 mm	125 VDC	Female Socket	UL94 V-0	All	Liquid Crystal Polymer (LCP)	Receptacle	Solder	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1-2307728-6	0.161 in	4.1 mm	0.3 µm	12 µin	Square	Black	Tin	Surface Mount Right Angle	Phosphor Bronze	Push-Pull	0.079 in	2 mm		118.1 µin	3 µm	2	2 A	0.079 in	2 mm	125 VDC	Female Socket	UL94 V-0	All	Liquid Crystal Polymer (LCP)	Receptacle	Solder	-40 °C	105 ░C	16
