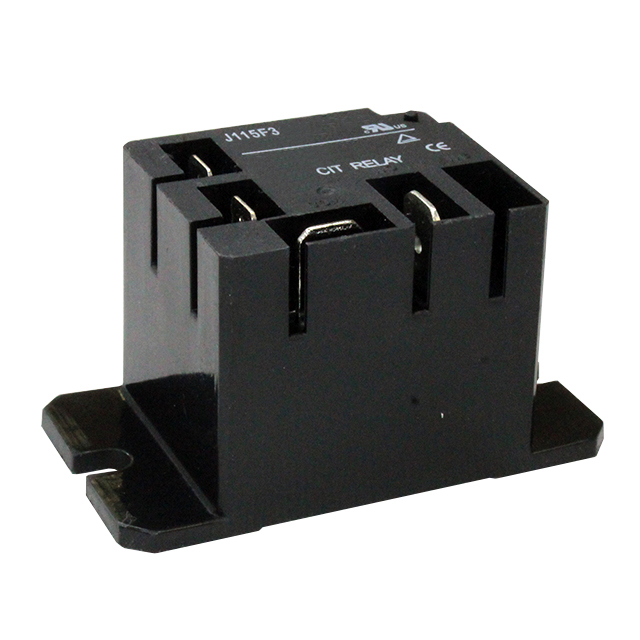

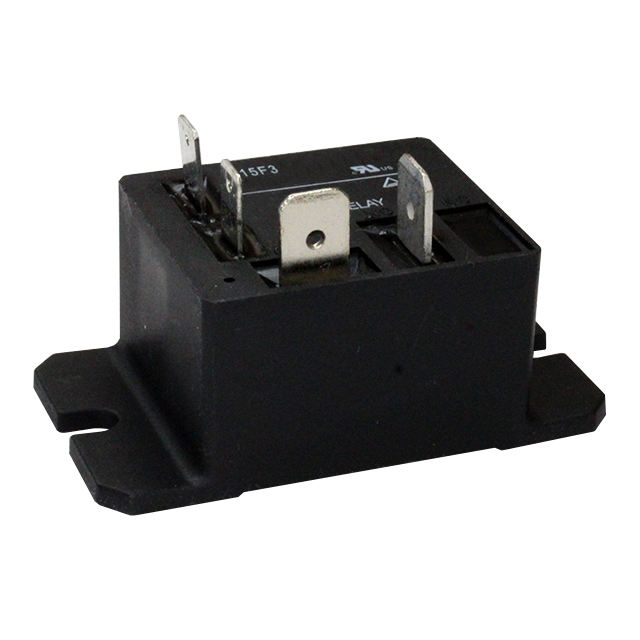

J115F31 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 50A 24V
| Part | Coil Resistance | Contact Material | Operate Time | Contact Form | Must Operate Voltage | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Termination Style | Release Time | Seal Rating | Coil Current | Mounting Type | Coil Insulation | Coil Type | Coil Voltage | Switching Voltage [Max] | Relay Type | Contact Rating (Current) | Must Release Voltage | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 384 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 15 ms | SPST-NO (1 Form A) | 18 VDC | 5500 W 13850 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 62.5 mA | Chassis Mount | Class F | Non Latching | 24 VDC | 110 VDC 277 VAC | General Purpose | 50 A | 2.4 VDC | |
CIT Relay and Switch | 27 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPST-NO (1 Form A) | 9 VAC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 444.4 mA | Chassis Mount | Class F | Non Latching | 12 VAC | 110 VDC 277 VAC | General Purpose | 40 A | 3.6 VAC | cURus TUV |
CIT Relay and Switch | 120 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPDT (1 Form C) | 18 VAC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 200 mA | Chassis Mount | Class F | Non Latching | 24 VAC | 110 VDC 277 VAC | General Purpose | 40 A | 7.2 VAC | cURus TUV |
 CIT Relay and Switch | 13.445 kOhms | Silver Tin Oxide (AgSnO) | 15 ms | SPST-NO (1 Form A) | 82.5 VDC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 8.2 mA | Chassis Mount | Class F | Non Latching | 110 VDC | 110 VDC 277 VAC | General Purpose | 40 A | 11 VDC | cURus TUV |
CIT Relay and Switch | 135 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPDT (1 Form C) | 6.75 VDC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 66.7 mA | Chassis Mount | Class F | Non Latching | 9 VDC | 110 VDC 277 VAC | General Purpose | 40 A | 0.9 VDC | cURus TUV |
CIT Relay and Switch | 3.84 kOhms | Silver Tin Oxide (AgSnO) | 15 ms | SPDT (1 Form C) | 36 VDC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | Chassis Mount | Class F | Non Latching | 48 VDC | 110 VDC 277 VAC | General Purpose | 40 A | 4.8 VDC | cURus TUV | |
CIT Relay and Switch | 54 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPDT (1 Form C) | 6.75 VDC | 5500 W 13850 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 166.7 mA | Chassis Mount | Class F | Non Latching | 9 VDC | 110 VDC 277 VAC | General Purpose | 50 A | 0.9 VDC | |
CIT Relay and Switch | 2.36 kOhms | Silver Tin Oxide (AgSnO) | 15 ms | SPST-NO (1 Form A) | 82.5 VAC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 46.6 mA | Chassis Mount | Class F | Non Latching | 110 VAC/DC | 110 VDC 277 VAC | General Purpose | 40 A | 33 VAC | cURus TUV |
CIT Relay and Switch | 135 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPST-NO (1 Form A) | 6.75 VDC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 66.7 mA | Chassis Mount | Class F | Non Latching | 9 VDC | 110 VDC 277 VAC | General Purpose | 40 A | 0.9 VDC | cURus TUV |
CIT Relay and Switch | 42 Ohms | Silver Tin Oxide (AgSnO) | 15 ms | SPST-NO (1 Form A) | 3.75 VDC | 4400 W 11080 VA | -55 C | 125 °C | 0.187 in 0.25 in | Quick Connect | 10 ms | Sealed - Fully | 119 mA | Chassis Mount | Class F | Non Latching | 5 VDC | 110 VDC 277 VAC | General Purpose | 40 A | 0.5 VDC | cURus TUV |
