1609036 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
LINE FILTER 250VAC 3A CHASSIS
| Part | Filter Type | Mounting Type | Configuration | Termination Style | Approval Agency | Frequency - Operating [Max] | Frequency - Operating [Min] | Current | Applications | Voltage - Rated AC | Operating Temperature [Min] | Operating Temperature [Max] | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

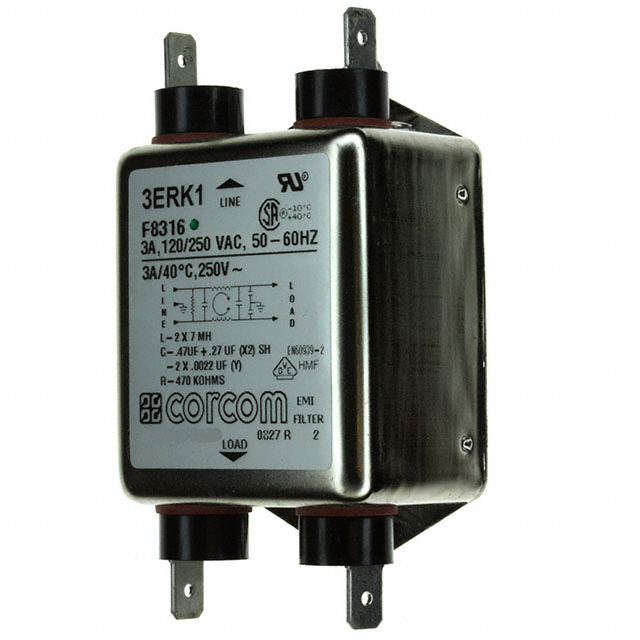

 TE Connectivity Raychem Cable Protection | Single Phase | Chassis Mount | Single Stage | Quick Connect | CSA UR VDE | 60 Hz | 50 Hz | 3 A | General Purpose | 250 V | -10 °C | 40 °C | 7 mH |

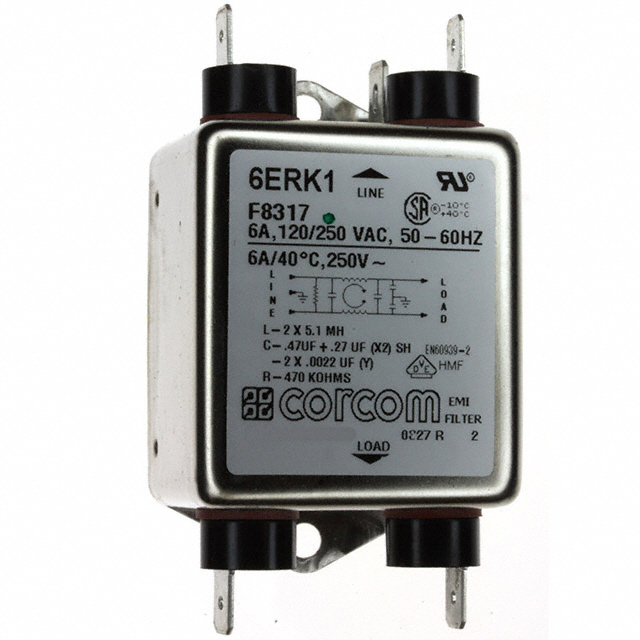

 TE Connectivity Raychem Cable Protection | Single Phase | Chassis Mount | Single Stage | Quick Connect | CSA UR VDE | 60 Hz | 50 Hz | 6 A | General Purpose | 250 V | -10 °C | 40 °C | 5.1 mH |
