896-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Gender	Color	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Features	Read Out	Card Type	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Contact Material	Termination	Pitch	Pitch	Flange Feature
EDAC Inc. 896-062-556-804	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever	0.156 "	3.96 mm	2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in

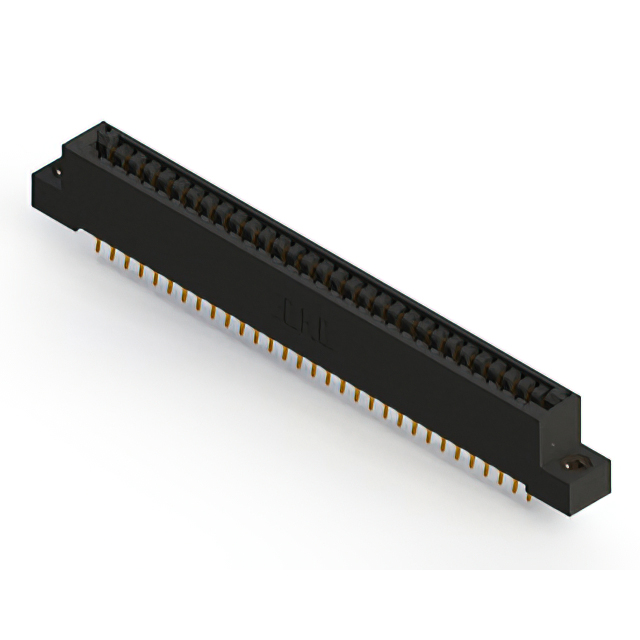

EDAC Inc. 896-062-556-208	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 896-062-560-208	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 896-062-558-203	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever	0.116 "	2.95 mm	2		Dual	Non Specified - Dual Edge	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	Floating Bobbin Flush Mount
EDAC Inc. 896-062-556-802	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever	0.128 "	3.25 mm	2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in
EDAC Inc. 896-062-559-808	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2		Dual	Non Specified - Dual Edge	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-062-555-807	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder Eyelet(s)	3.18 mm	0.125 in	M3 Threaded Insert Top Mount Opening
EDAC Inc. 896-062-559-212	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever	0.128 "	3.25 mm	2		Dual	Non Specified - Dual Edge	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	Flush Mount Side Opening Unthreaded
EDAC Inc. 896-062-560-201	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2	Card Extender	Dual	Non Specified - Dual Edge	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in
EDAC Inc. 896-062-558-807	Polyphenylene Sulfide (PPS)	2	Female	Black	Cantilever			2		Dual	Non Specified - Dual Edge	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	31	125 °C	-40 C	Gold	62	Copper Alloy	Solder	3.18 mm	0.125 in	M3 Threaded Insert Top Mount Opening
