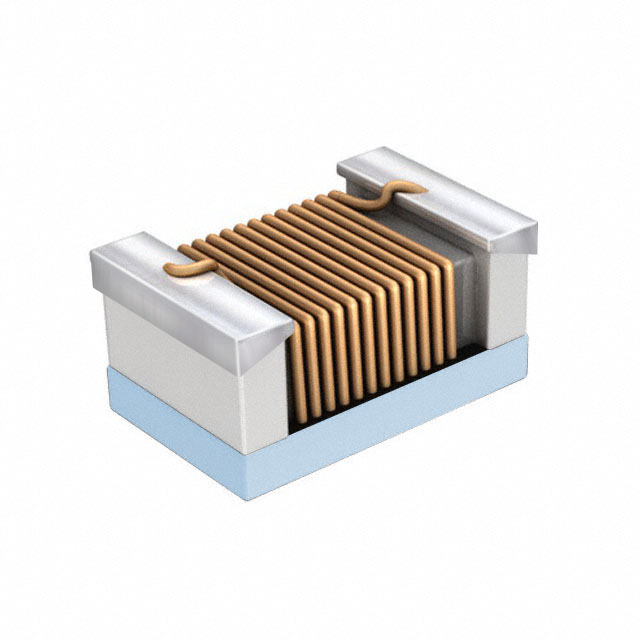

0402HM Series

Manufacturer: Delta Electronics/Components

Catalog

Catalog

FIXED IND 8.2NH 540MA 140MOHM SM

...

Part	Frequency - Self Resonant	Inductance Frequency - Test	Package / Case	Tolerance	Material - Core	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	DC Resistance (DCR)	Supplier Device Package	Current Rating (Amps)	Shielding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq	Q @ Freq [custom]
Delta Electronics/Components 0402HM-8N2EGTS	5.5 GHz	100 MHz	0402 (1005 Metric)	2 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	8.2 nH	140 mOhm	0402	0.54 A	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-190EGTS	4.5 GHz	100 MHz	0402 (1005 Metric)	2 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	19 nH	270 mOhm	0402	0.37 A	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-3N9EDTS	10 GHz	100 MHz	0402 (1005 Metric)	0.5 nH	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	3.9 nH	70 mOhm	0402	750 mA	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-100EKTS	5.5 GHz	100 MHz	0402 (1005 Metric)	10 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	10 nH	170 mOhm	0402	0.5 A	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-100EJTS	5.5 GHz	100 MHz	0402 (1005 Metric)	5 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	10 nH	170 mOhm	0402	0.5 A	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-300EJTS	3.3 GHz	100 MHz	0402 (1005 Metric)	5 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	30 nH	580 mOhm	0402	270 mA	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
Delta Electronics/Components 0402HM-2N5EKTS	15 GHz	100 MHz	0402 (1005 Metric)	10 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	2.5 nH	50 mOhm	0402	0.85 A	Unshielded	Surface Mount	-55 C	125 °C	20		250 MHz
Delta Electronics/Components 0402HM-510EKTS	2.85 GHz	100 MHz	0402 (1005 Metric)	10 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	51 nH	1.08 Ohm	0402	0.21 A	Unshielded	Surface Mount	-55 C	125 °C				25
Delta Electronics/Components 0402HM-110EGTS	5.5 GHz	100 MHz	0402 (1005 Metric)	2 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	11 nH	140 mOhm	0402	0.5 A	Unshielded	Surface Mount	-55 C	125 °C		250 MHz			30
Delta Electronics/Components 0402HM-300EKTS	3.3 GHz	100 MHz	0402 (1005 Metric)	10 %	Ceramic	Drum Core Wirewound	0.6 mm	0.024 in	0.028 in	1.15 mm	0.045 in	0.7 mm	30 nH	580 mOhm	0402	270 mA	Unshielded	Surface Mount	-55 C	125 °C	25	250 MHz
