56S201 Series
Manufacturer: Rosenberger
Beta
⌘K

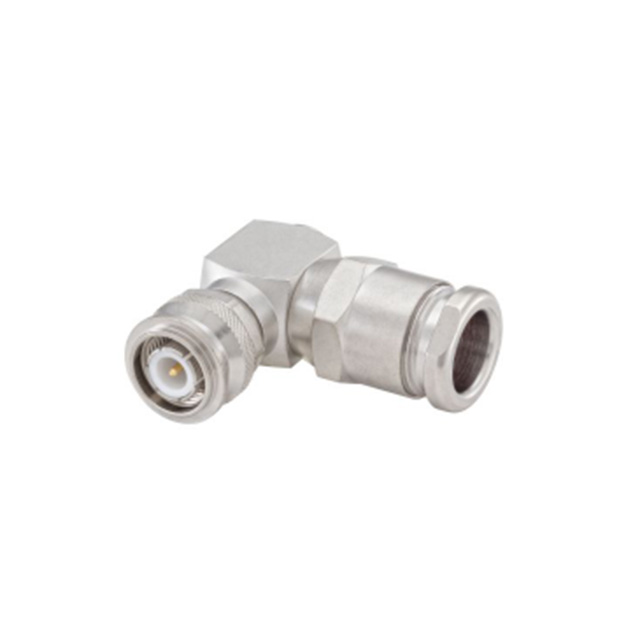

CONN TNC PLUG R/A 50OHM SOLDER
| Part | Voltage Rating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Includes | Center Contact Plating | Body Material | Contact Termination | Connector Type | Frequency - Max [Max] | Number of Ports | Center Contact Material | Connector Style | Fastening Type | Mounting Type | Cable Group | Impedance | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | Polytetrafluoroethylene (PTFE) | White Bronze | -65 ░C | 165 °C | 500 | 1 Clamp 1 Connector 1 Contact 1 End Cap 1 Gasket 1 Nut 1 Washer | Gold | Brass | Solder | Plug Male Pin | 10 GHz | 1 | Brass | TNC | Threaded | Free Hanging (In-Line) Right Angle | 214 RG-213 | 50 Ohms | Silver | Clamp |
