3003-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

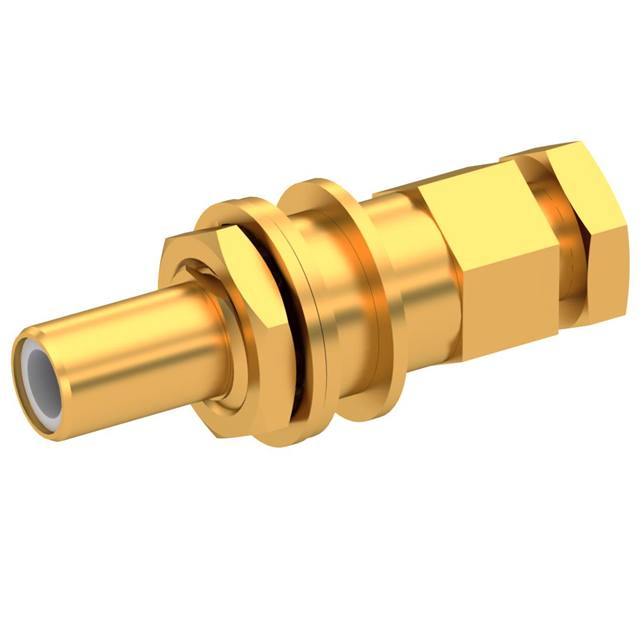

SLB / STRAIGHT JACK MALE SOLDER
| Part | Body Finish | Center Contact Plating | Insertion Loss | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Frequency - Max [Max] | Cable Group | Connector Type | Mounting Feature | Number of Ports | Connector Style | Shield Termination | Mounting Type | Housing Color | Center Contact Material | Contact Termination | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 0.3 dB | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 4 GHz | RG-405 (.086 Semi Rigid) | Jack Male Pin | Bulkhead - Front Side Nut | 1 | SLB | Clamp | Panel Mount | Gold | Brass | Solder | Snap-On | 50 Ohms |
