130146 Series
Manufacturer: Molex
Catalog
WATERTITE EXTREME GROUND FAULT MONITORING CONNECTOR 2 POLE/3 WIRE, NEMA 5-20, 125V, CORD GRIP BODY SIZE F2, SILICONE HUSK
| Part | Features | Ingress Protection | Approval Agency | Mounting Type | Connector Style | Current Rating (Amps) | Voltage Rating | Termination | Connector Type | Number of Positions | Voltage Rating [Min] | Voltage Rating [Max] | Current Rating (Amps) [Min] | Current Rating (Amps) [Max] | Style | Wire Gauge | Cord Type | Color | 2nd Connector | 1st Connector | Length [x] | Length [x] | Shielding | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Cord Grip Ground Indicator Lighted Strain Relief | IP67 - Dust Tight Waterproof | CSA UL | Free Hanging (In-Line) | NEMA 5-20R | 20 A | 125 VAC | Screw | Receptacle Female Sockets | |||||||||||||||

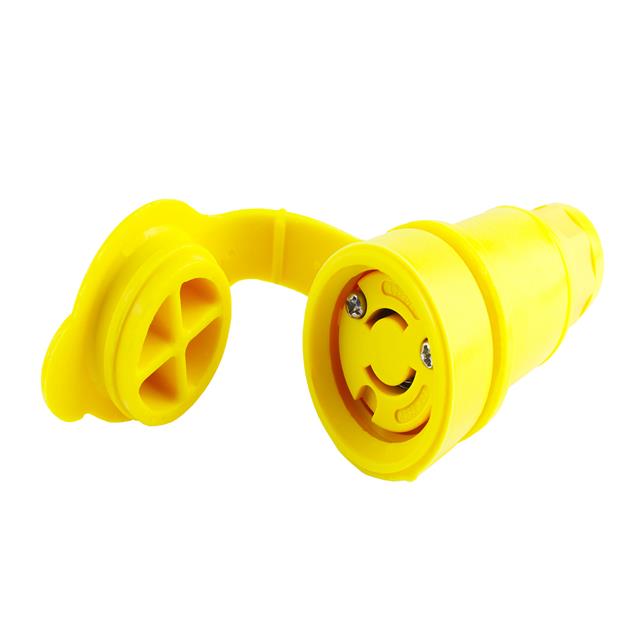

 Molex | Cord Grip Cover Locking Blade Strain Relief | IP67 - Dust Tight Waterproof | CSA UL | Free Hanging (In-Line) | NEMA L2-20R | 20 A | 250 VAC | Screw | Receptacle Female Sockets | 2 | ||||||||||||||

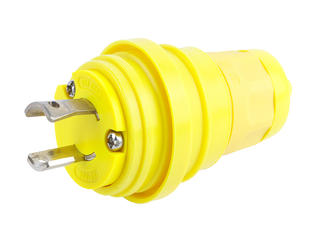

 Molex | Cord Grip Locking Blade Strain Relief | IP67 - Dust Tight Waterproof | CSA UL | Free Hanging (In-Line) | NEMA L2-20P | 20 A | 250 VAC | Screw | Plug Male Blades | 2 | ||||||||||||||
 Molex | Flip Lid Locking Blade | IP67 - Dust Tight Waterproof | Wall Mount | NON-NEMA (3P3W) | Screw | Receptacle Female Sockets | 125 VAC | 250 VAC | 10 A | 15 A | ||||||||||||||
 Molex | IP67 - Dust Tight Waterproof | CSA UL | Wall Mount | 15 A | 250 VAC | Screw | Receptacle Female Sockets | |||||||||||||||||
 Molex | Cord Grip Grommets Strain Relief | IP69K | CSA | Free Hanging (In-Line) | NON-NEMA (3P3W) | Screw | Plug Male Blades | 125 VAC | 250 VAC | 10 A | 15 A | |||||||||||||
 Molex | Cord Grip Cover | IP69K | CSA UL | Free Hanging (In-Line) | NEMA 6-20R | 20 A | 250 VDC | Screw | Receptacle Female Sockets | |||||||||||||||
 Molex | 15 A | 250 VDC | Female Sockets Male Pins | 16 AWG | SOOW | Yellow | NON-NEMA (3P3W)R | NON-NEMA (3P3W)P | 25 ft | 7.62 m | Unshielded | 3 | ||||||||||||
 Molex | Cord Grip Locking Blade Strain Relief | IP67 - Dust Tight Waterproof | CSA UL | Free Hanging (In-Line) | NEMA L7-15P | 15 A | 277 VAC/DC | Screw | Plug Male Blades | |||||||||||||||
 Molex | Cord Grip Cord-Clamp Strain Relief | IP69K | CSA UL | Free Hanging (In-Line) | NEMA L7-15P | 15 A | 277 V | Screw | Plug Male Blades |
