2339202 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

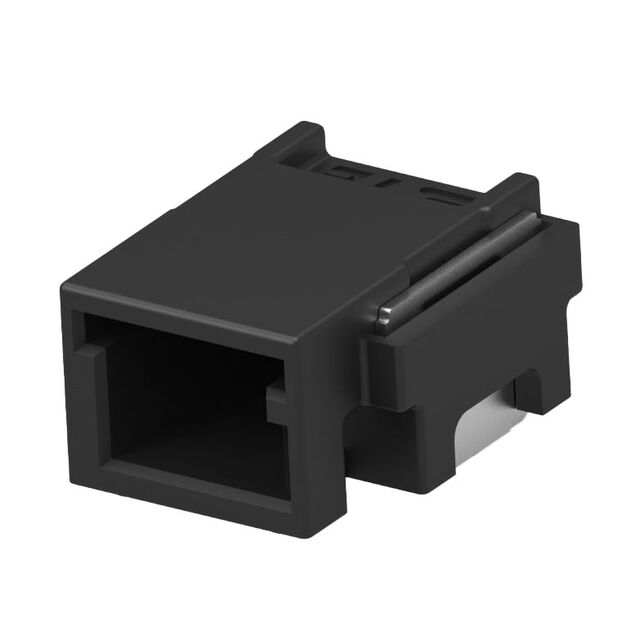

2POS,TAB0.5X0.4,HDR ASSY,90 DEG,
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish - Post | Style | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Height | Insulation Height | Fastening Type | Number of Positions | Contact Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Material Flammability Rating | Number of Positions Loaded | Features | Insulation Color | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Material | Mounting Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -40 °C | 130 °C | Header | Tin | Board to Cable/Wire | 0.05 in | 1.27 mm | Square | 5.97 mm | 0.235 in | Push-Pull | 2 | Tab | Solder | 0.3 µm | 12 µin | Glass Filled Nylon 4T Polyamide (PA4T) | UL94 HB | All | Solder Retention | Black | 4 mm | 0.157 in | Shrouded - 4 Wall | 1 µm | 39.4 µin | 12 V | Copper Alloy | Surface Mount Right Angle | 1 |
