VOH1016 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

OPTOISO 5KV OPEN COLLECTOR 6-DIP

Part	Current - DC Forward (If) (Max)	Package / Case	Package / Case	Package / Case	Number of Channels [custom]	Voltage - Supply	Supplier Device Package	Output Type	Data Rate	Rise / Fall Time (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Current - Output / Channel	Input Type	Mounting Type	Voltage - Forward (Vf) (Typ)	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]

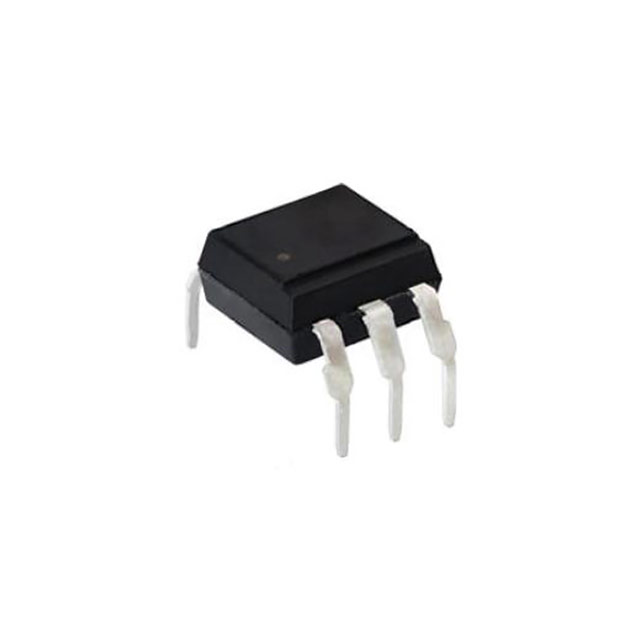

Vishay Semiconductor Opto Division VOH1016AG-V	50 mA	6-DIP	10.16 mm	0.4 in	1	16 VDC	6-DIP	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Through Hole	1.1 V	1.2 µs	2 µs

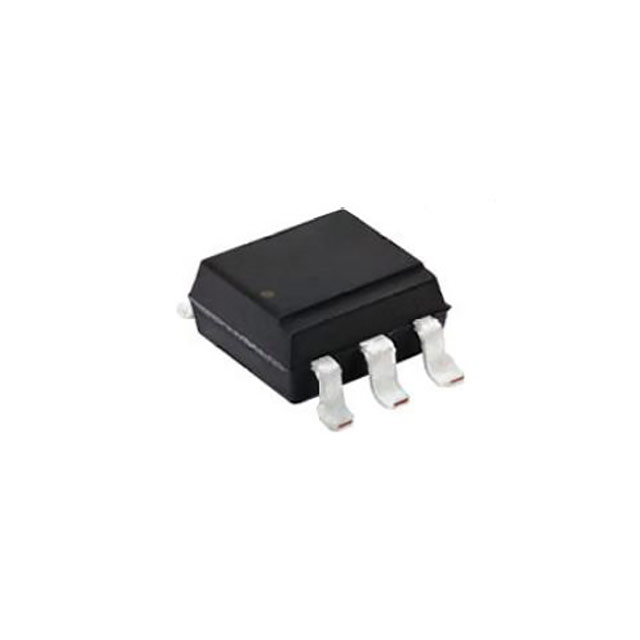

Vishay Semiconductor Opto Division VOH1016AB-T2	50 mA	6-SMD Gull Wing			1	16 VDC	6-SMD	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Surface Mount	1.1 V	1.2 µs	2 µs
Vishay Semiconductor Opto Division VOH1016AB-VT	50 mA	6-SMD Gull Wing			1	16 VDC	6-SMD	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Surface Mount	1.1 V	1.2 µs	2 µs
Vishay Semiconductor Opto Division VOH1016AG	50 mA	6-DIP	10.16 mm	0.4 in	1	16 VDC	6-DIP	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Through Hole	1.1 V	1.2 µs	2 µs
Vishay Semiconductor Opto Division VOH1016AB-VT2	50 mA	6-SMD Gull Wing			1	16 VDC	6-SMD	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Surface Mount	1.1 V	1.2 µs	2 µs
Vishay Semiconductor Opto Division VOH1016AB-T	50 mA	6-SMD Gull Wing			1	16 VDC	6-SMD	Open Collector	2 MHz	40 ns 50 ns	-40 C	100 °C	1	10 kV/µs	50 mA	DC	Surface Mount	1.1 V	1.2 µs	2 µs
