CJH5E88 Series
Manufacturer: Panduit Corp
Beta
⌘K

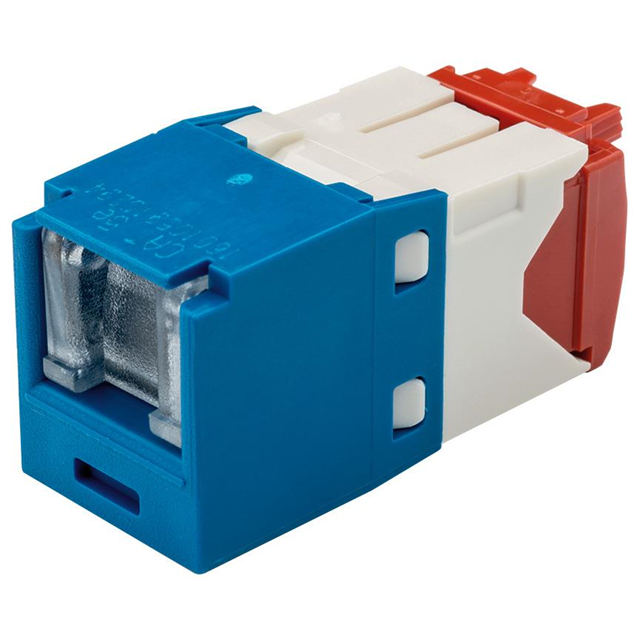

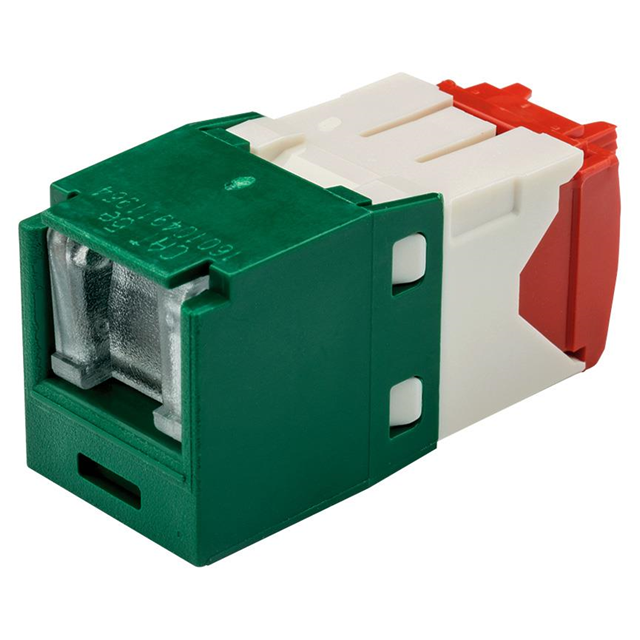

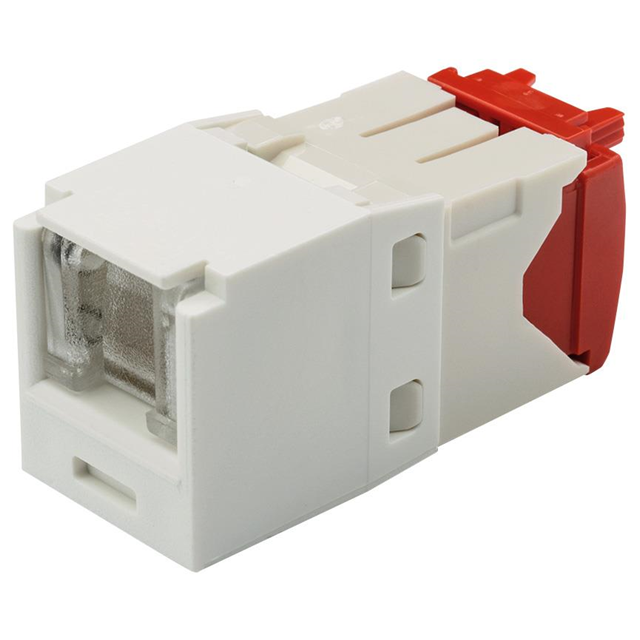

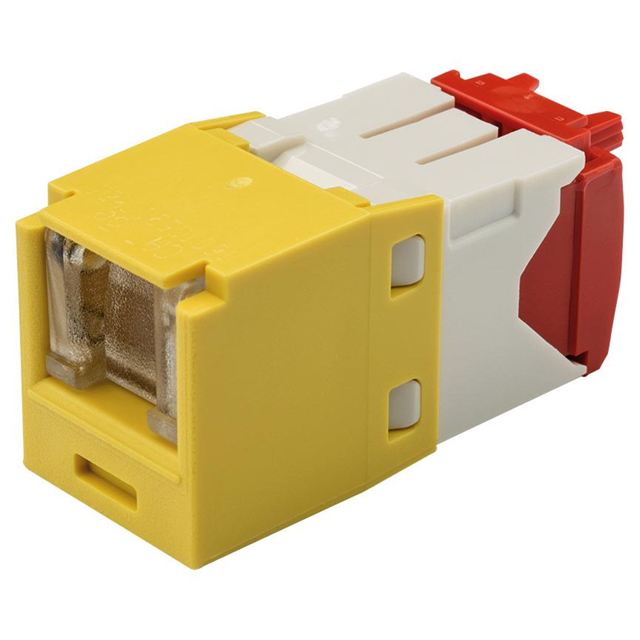

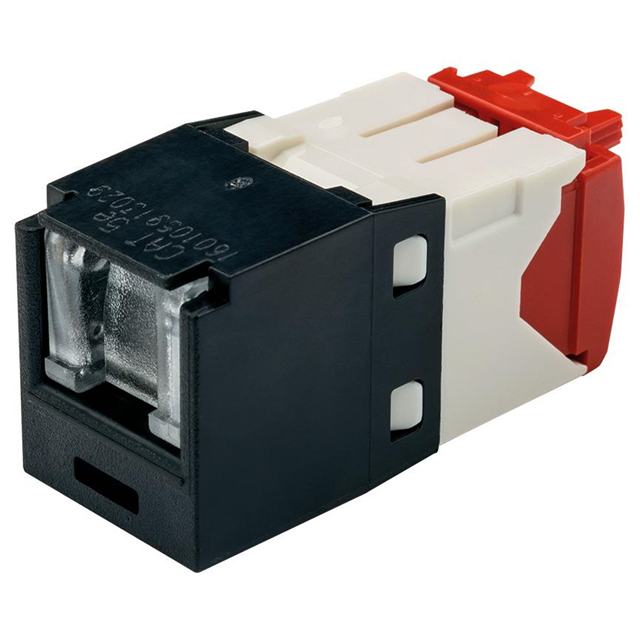

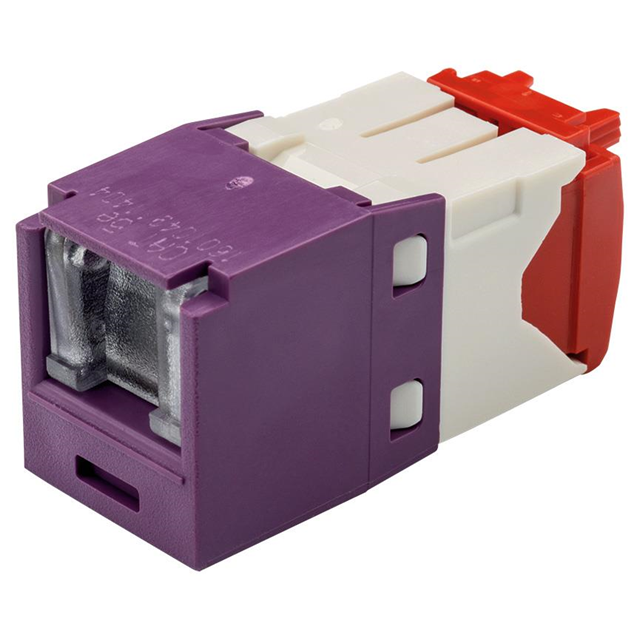

CAT 5E SPRING SHUTTERED JACK, TG STYLE,
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Ratings | Shielding | Contact Material | Number of Positions/Contacts | Connector Type | Number of Rows | Tab Direction | LED Color | Number of Ports | Orientation | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 65 °C | -10 °C | Acrylonitrile Butadiene Styrene (ABS) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
 Panduit Corp | 75 ░C | -10 °C | Polycarbonate (PC) | Cat5e | Unshielded | Phosphor Bronze | 8p8c (RJ45 Ethernet) | Jack | 1 | Up | Does Not Contain LED | 1 | Straight | IDC | Panel Mount |
