09360031 Series
Manufacturer: HARTING
Beta
⌘K
HAN U HOOD ANGLED ENTRY 2 PEG PG 11 ROHS COMPLIANT: NA
| Part | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Lock Location | Thread Size | Style | Features | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Hood | 28 mm | 2.142 in | 27 mm | 1.102 " | 1.063 in | 54.4 mm | Locking Clip (1) on Base Bottom | PG11 | Side Entry | ||
HARTING | Base - Panel Mount 90° | Locking Clip (1) on Base Bottom | PG11 | Side Entry | ||||||||

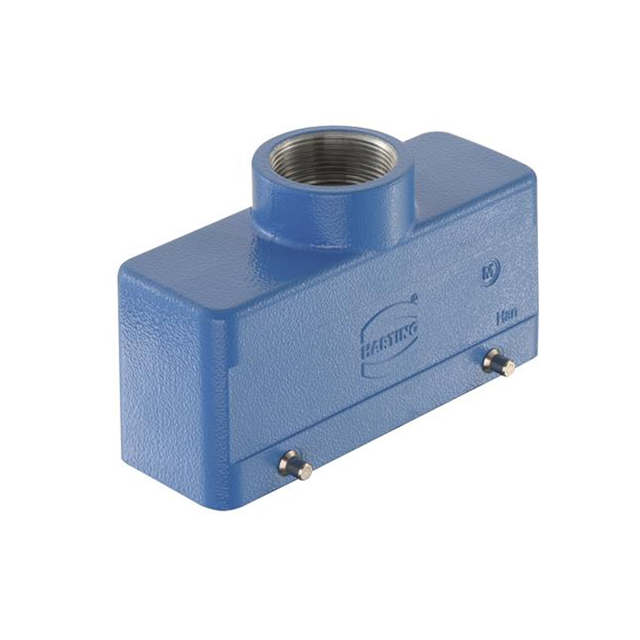

 HARTING | Hood - Coupling | 24.2 mm | 2.299 in | 24.2 mm | 0.953 in | 0.953 in | 58.4 mm | Locking Clip (1) on Hood Top | PG11 | Bottom Entry Top or Bottom Entry | Cable to Cable | Blue |
