325008 Series

Catalog

CONN BARRIER STRIP 6CIRC 0.325"

Part	Material - Insulation	Terminal Screw Material	Operating Temperature	Material Flammability Rating	Mounting Type	Number of Rows	Bottom Termination	Barrier Type	Features	Number of Circuits	Number of Wire Entries	Terminal Block Type	Voltage Rating	Top Termination	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Pitch	Pitch
Curtis Industries 325008-06-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	6	6	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm

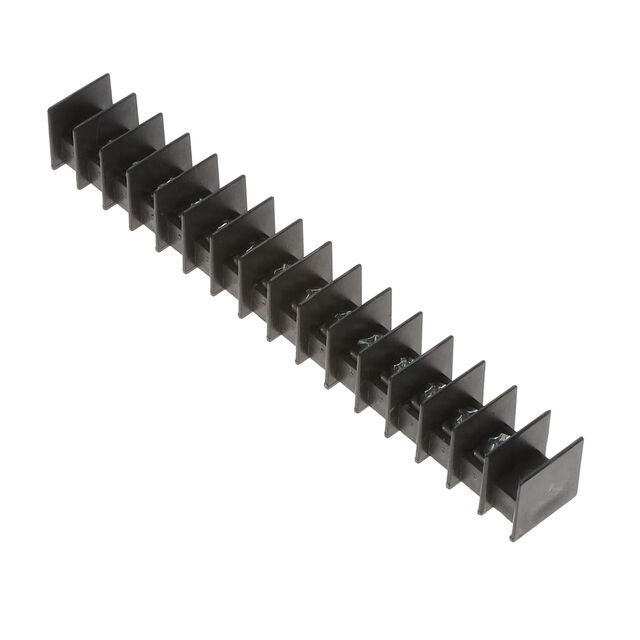

Curtis Industries 325008-14-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	14	14	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-25-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	25	25	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-15-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	15	15	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-03-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	3	3	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-18-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	18	18	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-20-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	20	20	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-24-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	24		Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
Curtis Industries 325008-02-0	Polypropylene (PP)	Steel	105 C	UL94 V-0	Chassis Panel	1	Closed	2 Wall (Dual)	Flange	2	2	Barrier Block	300 VDC	Screws with Captive Plate	15 A	14 AWG	22 AWG	0.325 in	8.26 mm
