3580/9 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

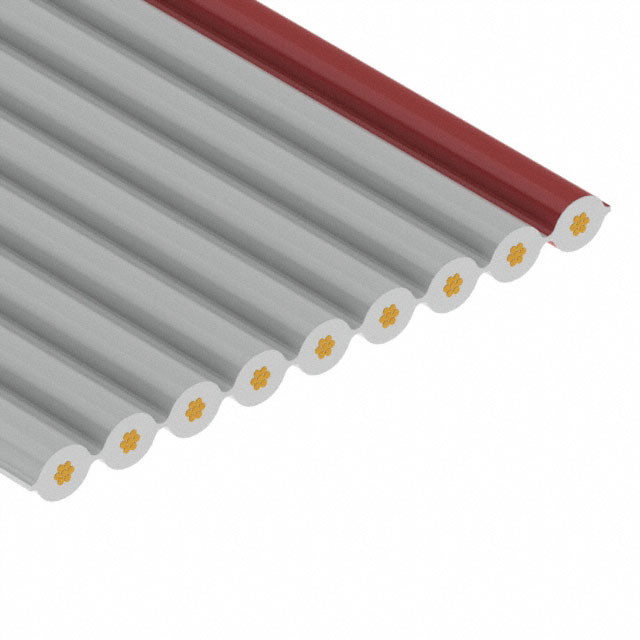

CBL RIBN 9COND 0.05 GRAY 100'
| Part | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Jacket (Insulation) Material | Ribbon Width | Ribbon Width | Voltage | Ribbon Thickness [custom] | Ribbon Thickness [custom] | Cable Type | First Conductor Mark | Length [x] | Length [x] | Conductor Material | Wire Gauge | Number of Conductors | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Gray | -20 C | 105 ░C | 0.05 in | 1.27 mm | Poly-Vinyl Chloride (PVC) | 11.43 mm | 0.45 in | 300 V | 0.033 " | 0.84 mm | Flat Cable | Red | 100 ft | 30.48 m | Copper Tinned | 28 AWG | 9 | UL Style 2651 | 7 | 36 AWG | Unshielded |
