pp2 Series
Manufacturer: E-Switch
Beta
⌘K

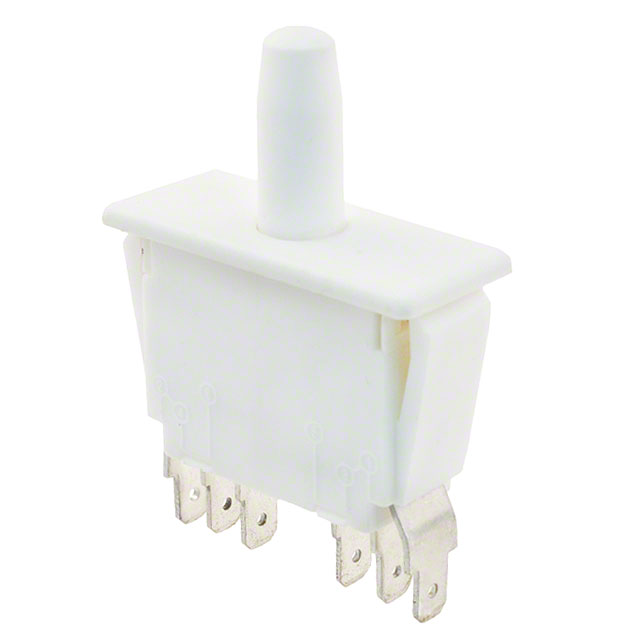

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Operating Position | Operating Position | Circuit | Electrical Life | Mechanical Life | Mounting Type | Current Rating (Amps) | Operating Force | Actuator Type | Switch Function | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | White Actuator | 0 °C | 85 °C | 125 V | 18.8 mm | 0.74 in | DPDT | 6000 Cycles | 50000 Cycles | Panel Mount Snap-In | 16 A | 340 gf | Round (Pin Plunger) | On-Mom | Quick Connect | |
 E-Switch | Pull On Lock | 0 °C | 85 °C | 125 V | 18.1 mm | 0.713 in | DPDT | 6000 Cycles | 50000 Cycles | Panel Mount Snap-In | 16 A | 160 gf | Push-Pull Plunger | On-Mom | Quick Connect - 0.250" (6.3mm) | |

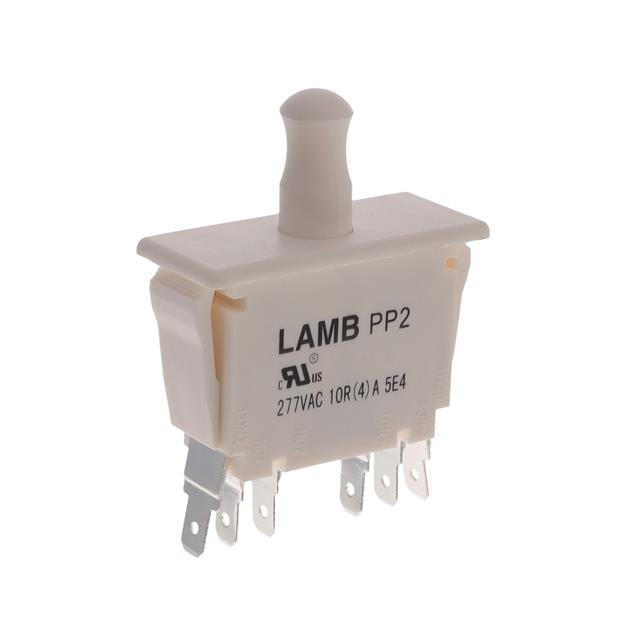

 E-Switch | 0 °C | 85 °C | 277 V | 15.5 mm | 0.61 in | DPDT | 6000 Cycles | 50000 Cycles | Panel Mount Snap-In | 10 A | 330 gf | Push-Pull Plunger | On-On-Mom | Quick Connect | IP40 |
